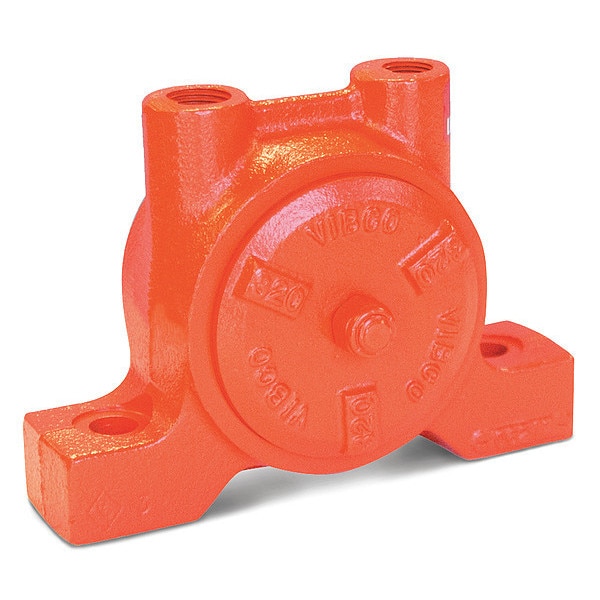

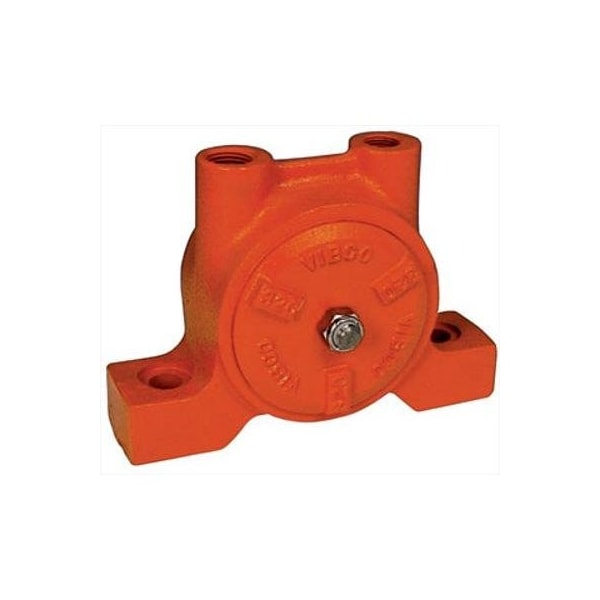

Pneumatic Vibrator, 600 lb, 5500 vpm, 80psi

VIBCO| Zoro #: G0816103| Mfr #: BVS-320

$243.45 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0816103 Mfr #: BVS-320
Item: Pneumatic VibratorDuty: Continuous
Mounting Plate: Sold SeparatelyMax. Temp.: 350 Degrees F
CFM @ 60 psi: 9Application: Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Where Exhausted Air Must be Remotely Discharged Using a Threaded Exhaust Port
CFM @ 80 PSI: 10dB @ 80 psi: 70
Muffler: 1A328Bearing Type: Oversized
Overall Height: 4-7/8"Speed @ 80 psi: 6800 VPM
Speed @ 60 psi: 5500 VPMHousing Material: Cast iron
Force Rating: 600 lb.Vibrator Type: Turbine
Bin Weight Capacity: 5300 lb.Inlet Port: 3/8" NPT
Max. Pressure: 80 psiOutlet Port: 1/2" NPT
Overall Width: 4"Standards: Meets OSHA
Overall Length: 6-3/4"Country of Origin (subject to change): United States

Product Description

Pneumatic Vibrator, Force 600 Pounds, Air Flow @ 80 PSI 10 CFM, Speed @ 80 PSI 6800 RPM, Maximum Pounds of Bin Material 6000, Noise Level @ 80 PSI 70 dB , Inlet Port Size 3/8 Inch, Outlet Port Size 1/2 Inch, Mounting Plate 4HV74, Muffler G1298866, Overall Length 6 1/2 Inches, Overall Height 4 7/8 Inches, Overall Width 4 Inches, Silent Turbine
