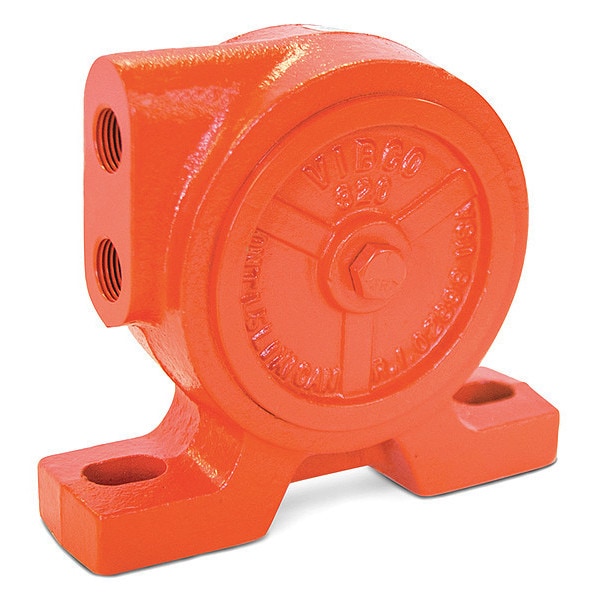

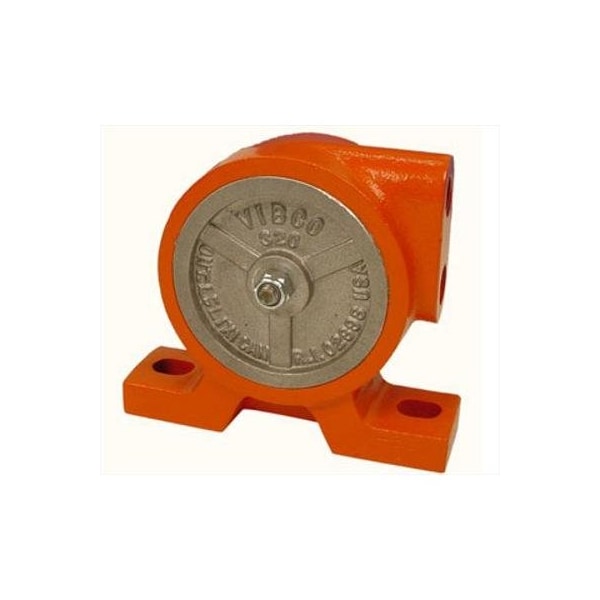

Pneumatic Vibrator, 650 lb, 8900 vpm, 80psi

VIBCO| Zoro #: G0828073| Mfr #: V-320

$215.22 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0828073 Mfr #: V-320
Mounting Plate: Sold SeparatelyVibrator Type: Ball
Duty: ContinuousMounting: Universal
Item: Pneumatic VibratorMax. Temp.: 350 Degrees F
Ball Material: Hardened SteelApplication: Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
CFM @ 60 psi: 14CFM @ 80 PSI: 17
dB @ 60 psi: 78dB @ 80 psi: 78
Muffler: 1A327Inlet Port: 3/8" NPT
Max. Pressure: 80 psiOverall Width: 2-3/4"
Overall Length: 5-9/16"Speed @ 80 psi: 10, 000 VPM
Overall Height: 4-7/8"Speed @ 60 psi: 8900 VPM
Housing Material: Cast ironForce Rating: 650 lb.
Bin Weight Capacity: 6500 lb.Outlet Port: 3/8" NPT
Country of Origin (subject to change): United States

Product Description

Ball Pneumatic Vibrator, Force 650 Pounds, Air Flow @ 80 PSI 17 CFM, Speed @ 80 PSI 6500 RPM, Maximum Pounds of Bin Material 6500, Noise Level @ 80 PSI 78 dB, Inlet Port Size 3/8 Inch, Outlet Port Size 3/8 Inch, Mounting Plate **4HX18**, Muffler G0628704, Overall Length 5 9/16 Inches, Overall Height 4 3/4 Inches, Overall Width 2 3/4 Inches
