  11. Electric Vibrator, 3.5 A, 115VAC, 1 Phase
Shop All Vibrators
Vibco

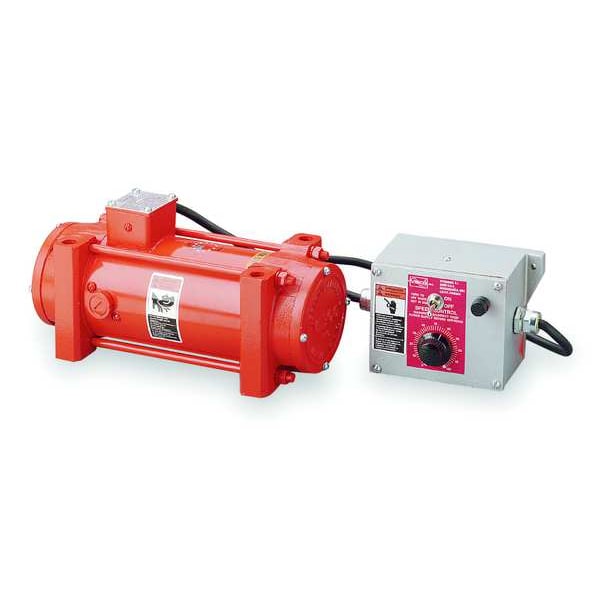

Electric Vibrator, 3.5 A, 115VAC, 1 Phase

product price: $1,798.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Adjustable
  • Force Rating 500 lb.
  • Power Source Electric
  • Voltage 115VAC
  • Phase 1
See all product information

Product Information

  • Brand Vibco
  • MFR # SCR-500
  • Zoro # G2055067
  • UPC #
    663001041870
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 13-3/16"
Overall Width 5-3/4"
Overall Height 6-3/4"
Mount Hole Size 1/2 in
Mount Hole Center-to-Center Length 8.94 in
Mount Hole Center-to-Center Width 4.5 in

Details

Vibrator Type Adjustable
Item Electric Vibrator
Force Rating 500 lb.
Power Source Electric
Voltage 115VAC
Phase 1
Speed 950 to 4000 vpm
Bin Weight Capacity 5000 lb.
Application Vibrating Tables for Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Duty Continuous
Bearing Type Oversized
Mounting Plate Sold Separately
Mounting Position Universal
Includes 115 VAC to 90 VDC Control
Max. Temp. 200 Degrees F
Enclosure Totally Enclosed
dBA 70 @ 3 ft.
Amps 3.5
Standards ASTM and ASME
Force Adjustable
Minimum Vibrations per Minute at Intermittent Duty 2,500 vpm
Maximum Bin Weight Capacity 5,000 lb
Voltage Type AC
Adjustable Force Yes
Maximum Force 500 lbf
For Environment Highly Corrosive
Horsepower Rating 0.33 hp
Maximum Vibration Speed 4,000 vpm
Motor Enclosure Totally Enclosed Nonventilated
Weight 45 lb
Maximum Vibrations per Minute at Intermittent Duty 4,000 vpm
Minimum Vibrations per Minute at Continuous Duty 950 vpm
Operating Voltage 115V AC
Series SCR
For Location Indoor, Outdoor
Mounting Orientation Any Position
Sound Level 70 dBA
Mount Plate Required Yes
Duty Cycle Continuous
Maximum Operating Temperature 200 Degrees F
Maximum Vibrations per Minute at Continuous Duty 2,500 vpm
Resistance Properties Corrosion Resistant
Adjustable Speed Yes
Full Load Current 3.5 A

Description

Electric Vibrator, Maximum Vibrations per Minute at Intermittent Duty 4,000 vpm, Minimum Vibrations per Minute at Intermittent Duty 2,500 vpm, Maximum Vibrations per Minute at Continuous Duty 2,500 vpm, Minimum Vibrations per Minute at Continuous Duty 950 vpm, Duty Cycle Continuous, Maximum Force 500 lbf, Voltage Type AC, Phase Single, Motor Enclosure Totally Enclosed Nonventilated, Sound Level 70 dBA, Power Source Electric Motor, Operating Voltage 115V AC, Maximum Bin Weight Capacity 5,000 lb
