Vibco

Pneumatic Vibrator, 75 lb, 8000 vpm, 80 psi

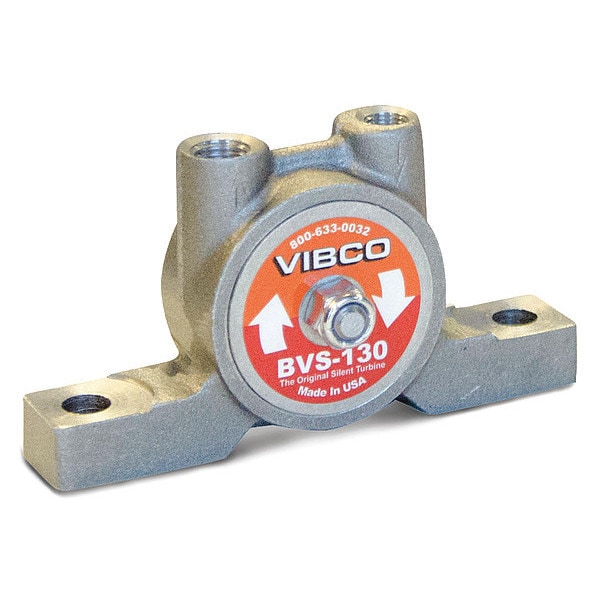

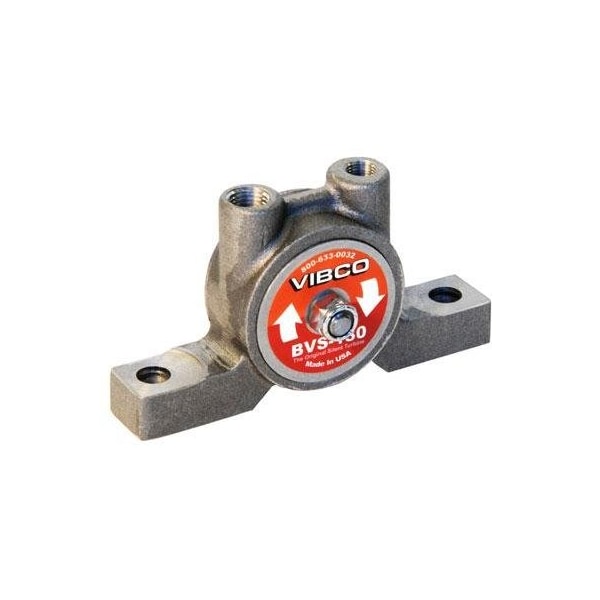

Vibco Pneumatic Vibrator, 75 lb, 8000 vpm, 80 psi BVS-130
Hover or click to zoom Tap to zoom
$193.15
  • Item: Pneumatic Vibrator
  • Vibrator Type: Turbine
  • Force Rating: 75 lb
See full product details
This item ships free.

Total: $193.15

Vibco #BVS-130 Specifications

  • Item: Pneumatic Vibrator
  • Vibrator Type: Turbine
  • Force Rating: 75 lb
  • CFM @ 80 PSI: 2
  • Speed @ 60 psi: 8000 VPM
  • Overall Length: 4-7/8"
  • Speed @ 80 psi: 10,500 VPM
  • Overall Width: 1-7/8"
  • Overall Height: 2-5/8"
  • Bin Weight Capacity: 750 lb
  • dB @ 80 psi: 67
  • Inlet Port: 1/8" NPT
  • Outlet Port: 1/4" NPT
  • Bearing Type: Oversized
  • Muffler: 1A326
  • Mounting Plate: Sold Separately
  • Max. Pressure: 80 psi
  • Mounting: 4" Between Mounting Holes
  • Application: Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Where Exhausted Air Must be Remotely Discharged Using a Threaded Exhaust Port
  • Max. Temp.: 350 Degrees F
  • Duty: Continuous
  • Housing Material: Cast iron
  • Standards: CE Certified, ATEX Certified
  • CFM @ 60 psi: 1.1
  • Country of Origin (subject to change): United States

Description

Pneumatic Vibrator, Turbine, Force Rating 75 lb, Bin Weight Capacity 750 lb, CFM @ 60 psi 2, Max. Temp. 350 Degrees F, Inlet Port 1/8 in NPT, Outlet Port 1/4 in NPT, Sold Separately, Cast Iron Housing Material, Oversized Bearing Type, Overall Length 4 7/8 in, Overall Width 1 7/8 in, Overall Height 2 5/8 in
