Shop VICKERS

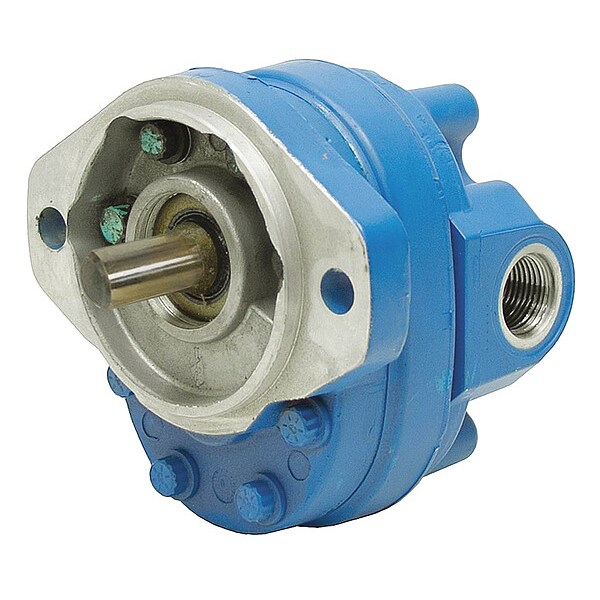

Gear Pump, Displace 0.66, GPM 8.9, Right

  • Mfr # 26004-RZG

  • Zoro # G4682483

product price:
$
636.99
/ea
Free Shipping & Returns

Key Features

Displacement (Cu. In./Rev.)
0.66
GPM @ 3600 RPM and 1000 PSI
8.9
Max. Continuous PSI
3,000
Min. RPM
750 RPM
Max. RPM
3,600 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
26004-RZG
Zoro #
G4682483
UPC #
-
Country of Origin
United States
Displacement (Cu. In./Rev.)
0.66
GPM @ 3600 RPM and 1000 PSI
8.9
Max. Continuous PSI
3,000
Min. RPM
750 RPM
Max. RPM
3,600 RPM
Ports (Inlet)
1-1/16-12
Ports (Outlet)
7/8-14
Shaft Extension (In.)
5/8 x 1-1/4
Cover Material
Aluminum
Features
Quiet Operation and Field Reversible
Rotation
CW
GPM @ 3600 RPM & 1000 PSI
8.9
Housing
Aluminum
Mounting
2 Bolt SAE A
Max. Intermittent Pressure (PSI)
3,500
Design
A
Item
Hydraulic Gear Pump
Housing Material
Aluminum
Hydraulic Pressure Port Location
Side
Displacement per Revolution
0.66 cu in/rev
Continuous Pressure- Maximum
3,000 psi
Motor Speed - Minimum
750 RPM
Shaft Type
Keyed
End Cap Material
Aluminum
Media Intake Connection Type
SAE
Motor Speed - Maximum
3,600 RPM
Product Type
Hydraulic Gear Pump
Continuous Pressure - Maximum
3,000 psi
Key Shape
Straight
Discharge Connection Type
SAE
Series
Rugid S26 Gear Pump-AL Gr2
Flow Rate - Maximum
8.9 gpm
Number of Stages
1
Rated Speed
3,600 RPM

Description

Hydraulic Gear Pump, Displacement per Revolution 0.659 cu in/rev, Media Intake Connection Size 1- 1/16 In.-12, Discharge Connection Size 7/8 In.-14, Continuous Pressure- Maximum 3,000 psi, Motor Speed - Maximum 3,600 RPM, Motor Speed - Minimum 750 RPM, Shaft Type Keyed, Rotation CW, Housing Material Aluminum, Mounting Type 2 Bolt SAE A, End Cap Material Aluminum, Hydraulic Pressure Port Location Side, Media Intake Connection Type SAE, Overall Height 5.2 in, Overall Length 5.1 in
