This item is Discontinued.

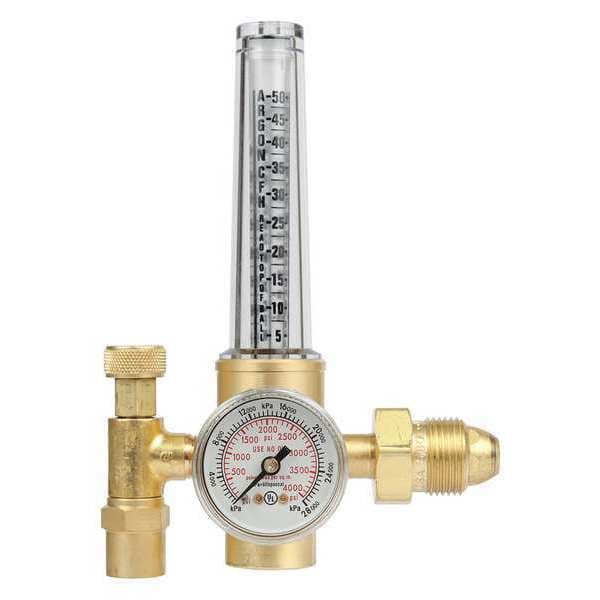

Victor Flowmeter Regulator, Single Stage, CGA-580, 25 psi, Use With: Argon, Carbon Dioxide 0387-0240

Flowmeter Regulator, Single Stage, CGA-580, 25 psi, Use With: Argon, Carbon Dioxide (Discontinued)

  • Mfr # 0387-0240
  • Zoro # G7571347
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0387-0240
Zoro #
G7571347
UPC #
716352223416
Country of Origin
Mexico

Dimensions

Gauge Size
1 1/2 in
Overall Length
7-1/4"
Gauge Diameter
1 1/2 in
Hose Fitting Size
B (Inert)
Inlet Connection Size
5/8"-14
Outlet Connection Size
5/8"-18

Details

Item
Flowmeter Regulator
Gas Service
Argon, Carbon Dioxide
Stages
Single Stage
Regulator Application
General Purpose
Delivery Pressure Range
25 psi
Inlet Connection
CGA 580
Outlet Connection
5/8"-18 F RH
Supply Pressure Gauge
0 to 4000 psi
Standards
ETL Listed, UL252
Coefficient of Volume
0.020
Regulator Supply Type
Cylinder
Series
HRF 1425-580
Regulator Capacity
Light Duty
Gauges Delivery Pressure
25 psi
Diaphragm Material
Brass
Body Material
Brass
Application
MIG Welding (GMAW), TIG Welding (GTAW)
Delivery
Up to 50 cfh Ar and 38 cfh CO2
Max. Inlet Pressure
3,000 psi
Type
Single Stage Piston
Features
Argon, Argon/Co2 Mix and Co2 Models, Single Stage Piston Design
Duty Rating
Light Duty
Maximum Flow Rate
38 scfh (Carbon Dioxide), 50 scfh (Argon)
Flowmeter Series
HRF 1400
Inlet Connection Type
NGO
Product Type
Flowmeter Regulator
Outlet Connection Type
UNF
Outlet Connection Gender
Female
Outlet Pressure (Maximum)
25 psig
Maximum Gauge Inlet Pressure
3,000 psig
Carbon Dioxide Flow Rate (Maximum)
38 scfh
Argon Flow Rate (Maximum)
50 scfh
Compatible Gas Type
Argon, Carbon Dioxide
Maximum Inlet Pressure
3,000 psig
Carbon Dioxide Flow Rate (Minimum)
1 scfh
Inlet Thread Direction
Right Hand
Outlet Thread Direction
Right Hand
Inlet Connection Gender
Female
Argon Flow Rate (Minimum)
1 scfh
CGA Number
CGA 580
Number of Stages
Single Stage
Flow Rate (Maximum)
50 scfh (Argon) ; 38 scfh (Carbon Dioxide)

Description

Flowmeter Regulator, Compatible Gas Type Argon, Carbon Dioxide, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 5/8 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 25 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 50 scfh, Carbon Dioxide Flow Rate (Maximum) 38 scfh, Number of Stages Single Stage
