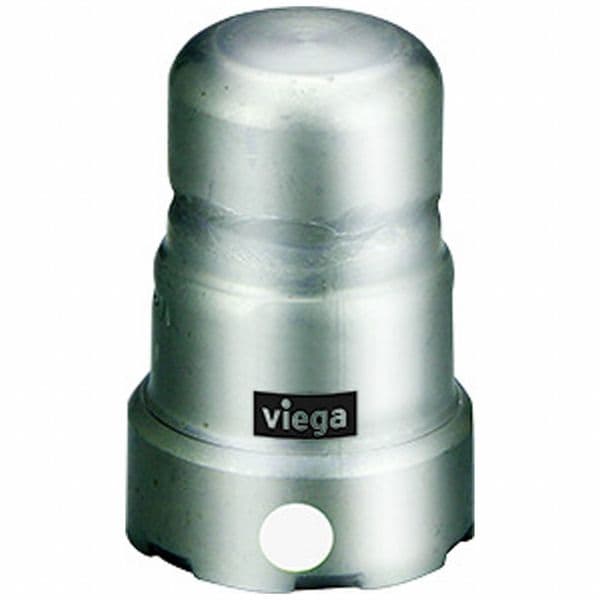

Cap, Stainless Steel, Press-fit 3/4 in
Mfr # 91820
Zoro # G408127535
product price:Â $68.19
/ea
Sold in multiples of 10 for $681.90
Key Features
Specific Fitting Shape
Cap
Overall Length
2 9/32 in
Application
Climate Control, Industrial, Marine
Material Grade
316
Compatible Pipe Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 91820
- Zoro #
- G408127535
- UPC #
- 691514918204
- Country of Origin
- Germany
Dimensions
- Overall Length
- 2 9/32 in
- Compatible Pipe Size
- 3/4 in
Details
- Item
- Crimp Fitting Cap
- Specific Fitting Shape
- Cap
- Application
- Climate Control, Industrial, Marine
- Material Grade
- 316
- Compatible Pipe Material
- Stainless Steel
- Standards
- ANSI, ASTM/NSF, DNV-GL Approved, ICC Compliant, UL Listed, UMC Compliant
- Fitting Connection Type
- Press-fit
- Fitting Material
- Stainless Steel
- Finish/Coating
- 317 stainless steel
- Maximum Operating Temperature
- 250 Degrees F
- Maximum Operating Pressure
- 200 psig
- O-Ring Material
- FKM
- For Media Type
- Air, Gases
- Operating Temperature - Maximum
- 250 Degrees F
- Operating Pressure - Maximum
- 200 psi
- Fitting Shape
- Cap
Description
Crimp Fitting Cap, Application Climate Control, Industrial, Marine, Compatible Copper Tube Size Not Applicable, Compatible Pipe Size 3/4 in, Fitting Connection Type Press-fit, Fitting Material Stainless Steel, Material Grade 316, O-Ring Material FKM, Specific Fitting Shape Cap, Overall Length 2 9/32 in, Maximum Operating Pressure 200 psig, Maximum Operating Temperature 250 Degrees F, Standards ANSI, ASTM/NSF, DNV-GL Approved, ICC Compliant, UL Listed, UMC Compliant
