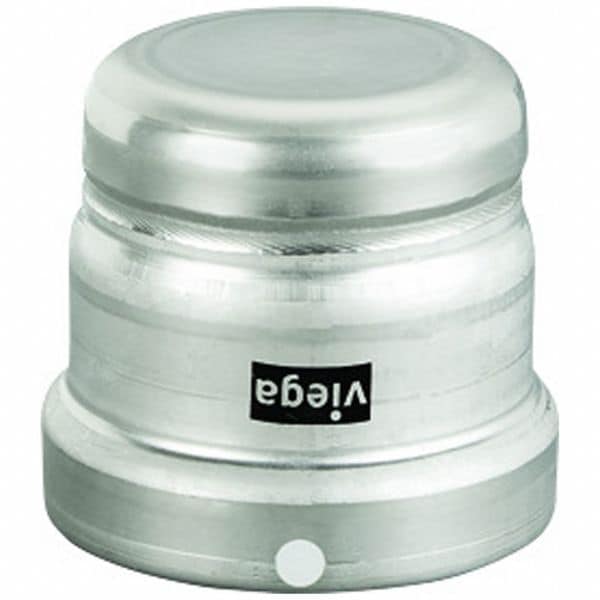

Cap, Stainless Steel, Press-fit 4 in
Mfr # 98550
Zoro # G708127532
product price:Â $573.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Cap
Compatible Pipe Material
Stainless Steel
Material Grade
316
Fitting Material
Stainless Steel
Overall Length
4 21/32 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 98550
- Zoro #
- G708127532
- UPC #
- 691514985503
- Country of Origin
- Germany
Dimensions
- Overall Length
- 4 21/32 in
- Compatible Pipe Size
- 4 in
Details
- Item
- Crimp Fitting Cap
- Specific Fitting Shape
- Cap
- Compatible Pipe Material
- Stainless Steel
- Material Grade
- 316
- Fitting Material
- Stainless Steel
- Fitting Connection Type
- Press-fit
- Application
- Climate Control, Industrial, Marine
- Standards
- ANSI, ASTM/NSF, DNV-GL Approved, ICC Compliant, UL Listed, UMC Compliant
- Finish/Coating
- 324 stainless steel
- O-Ring Material
- FKM
- Maximum Operating Temperature
- 250 Degrees F
- Maximum Operating Pressure
- 200 psig
- Fitting Shape
- Cap
- Operating Pressure - Maximum
- 200 psi
- Operating Temperature - Maximum
- 250 Degrees F
- For Media Type
- Air, Gases
Description
Crimp Fitting Cap, Application Climate Control, Industrial, Marine, Compatible Copper Tube Size Not Applicable, Compatible Pipe Size 4 in, Fitting Connection Type Press-fit, Fitting Material Stainless Steel, Material Grade 316, O-Ring Material FKM, Specific Fitting Shape Cap, Overall Length 4 21/32 in, Maximum Operating Pressure 200 psig, Maximum Operating Temperature 250 Degrees F, Standards ANSI, ASTM/NSF, DNV-GL Approved, ICC Compliant, UL Listed, UMC Compliant
