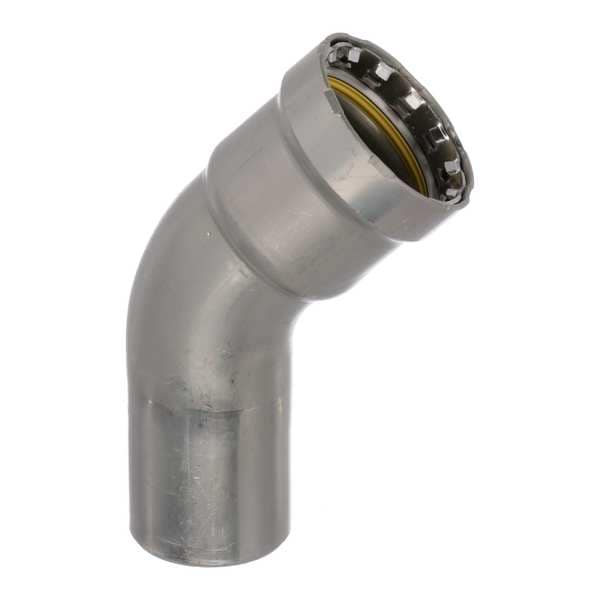

Elbow, Steel, Press-fit11/2", FTG11/2"
Mfr # 26121
Zoro # G003964290
product price:Â
$
64.69
/ea
Key Features
Specific Fitting Shape
45 Degrees Street Elbow Adapter
Standards
ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, CRN 23019.5 A/B/C, FM Class 1920, IAPMO PS 117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
Maximum Operating Pressure
200 psi
Fitting Side A Pipe Size
1 1/2 in
Fitting Material
Carbon Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 26121
- Zoro #
- G003964290
- UPC #
- 691514261218
- Country of Origin
- Germany
- Item
- Crimp Elbow Fitting
- Specific Fitting Shape
- 45 Degrees Street Elbow Adapter
- Standards
- ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, CRN 23019.5 A/B/C, FM Class 1920, IAPMO PS 117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
- Maximum Operating Pressure
- 200 psi
- Fitting Material
- Carbon Steel
- O-Ring Material
- HNBR
- Fitting Side B Connection Type
- FTG
- Finish/Coating
- Zinc Nickel-Plated
- Fitting Side A Connection Type
- Press-Fit
- Fitting Shape
- 45 Degrees Elbow
- Minimum Operating Temperature
- 0 Degrees F
- Application
- Gas and Fuel Oil
- Maximum Operating Temperature
- 250 Degrees F
- Resistance Properties
- Corrosion-Resistant
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Finish
- Zinc Nickel-Plated
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Side 2 Connection Type
- FTG
- For Media Type
- Potable Water
- Operating Temperature - Minimum
- 0 Degrees F
- Fitting Side 1 Connection Type
- Press-fit
- Connector Type
- Adapter
- Operating Pressure - Maximum
- 200 psi
Description
Crimp Elbow Fitting, Application Gas and Fuel Oil, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 1/2 in, O-Ring Material HNBR, Specific Fitting Shape 45 Degrees Street Elbow Adapter, Finish/Coating Zinc Nickel-Plated, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
