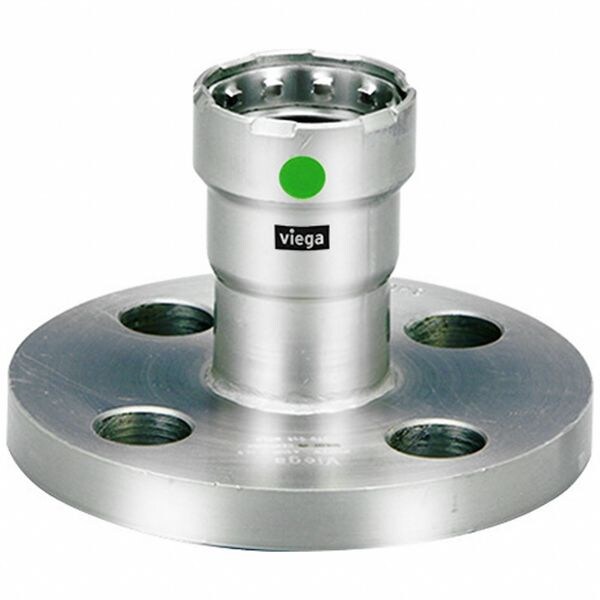

Flange, SS, Press-fit 1 1/4 in,
Mfr # 90920
Zoro # G806427749
product price:Â
$
300.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Flange
Standards
ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
Flange Thickness
5/8 in
O-Ring Material
EPDM
Application
Marine
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 90920
- Zoro #
- G806427749
- UPC #
- 691514909202
- Country of Origin
- Germany
- Item
- Crimp Adapter Fitting
- Specific Fitting Shape
- Flange
- Standards
- ABS Type approval ASME B31.1, ANSI 372FM Class 1920, NSF/ANSI 61, ANSI/CAN/UL 213, ASME B301, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RNSF
- O-Ring Material
- EPDM
- Application
- Marine
- Fitting Side A Connection Type
- Press-Fit
- Number of Bolt Holes
- 4
- Fitting Material
- Stainless Steel
- Material Grade
- 316
- Maximum Operating Pressure
- 200 psi
- Minimum Operating Temperature
- 0 Degrees F
- Compatible Tool Brand
- Milwaukee, Ridgid
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Color
- Silver
- Compatible Tube Material
- Stainless Steel
- Maximum Operating Temperature
- 250 Degrees F
- Fitting Shape
- Flange
- Fitting Side 1 Connection Type
- Press-fit
- Operating Temperature - Maximum
- 250 Degrees F
- For Media Type
- Compressed Air, Potable Water
- Operating Pressure - Maximum
- 200 psi
- Compatible Tube Hardness
- Schedule 5 to Schedule 40
- Operating Temperature - Minimum
- 0 Degrees F
Description
Crimp Adapter Fitting, Application Marine, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Not Applicable, Fitting Side A Copper Tube Size Not Applicable, Fitting Side B Copper Tube Size Not Applicable, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1 1/4 in, Fitting Side B Pipe Size Not Applicable, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Flange, Fitting Side A Tube Outer Diameter 1 1/4 in, Overall Length 3 1/4 in
