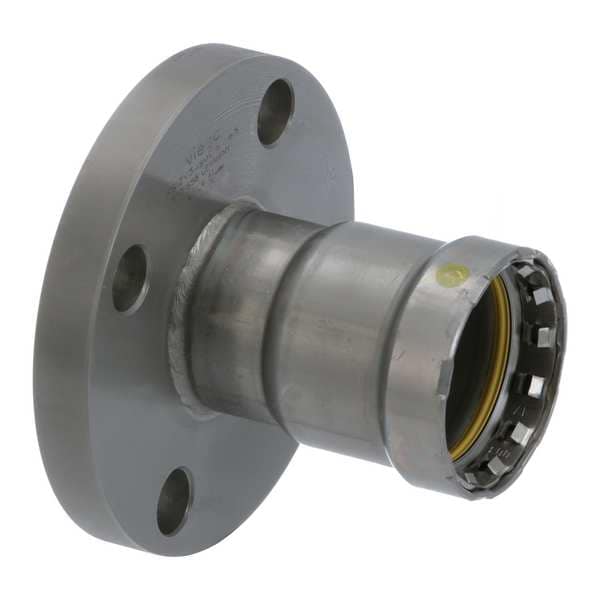

Flange, Steel, Press-fit11/2in, Flange
Mfr # 25781
Zoro # G603964362
product price:Â
$
184.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Flange Adapter
Standards
ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, CRN 23019.5 A/B/C, FM Class 1920, IAPMO PS 117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
Resistance Properties
Corrosion-Resistant
Maximum Operating Pressure
200 psi
Maximum Operating Temperature
250 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 25781
- Zoro #
- G603964362
- UPC #
- 691514257815
- Country of Origin
- Germany
Dimensions
- Bolt Hole Diameter
- 5/8 in
- Fitting Side A Pipe Size
- 1 1/2 in
- Overall Length
- 3 15/16 in
- Fitting Side 1 Pipe Size
- 1 1/2 in
- Wire Rope Length
- 3 15/16 in
- Length
- 3 15/16 in
Description
Crimp Adapter Fitting, Application Gas and Fuel Oil, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Flange, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 1/2 in, O-Ring Material HNBR, Specific Fitting Shape Flange Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 3 15/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter 5/8 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
