Shop VIEGA

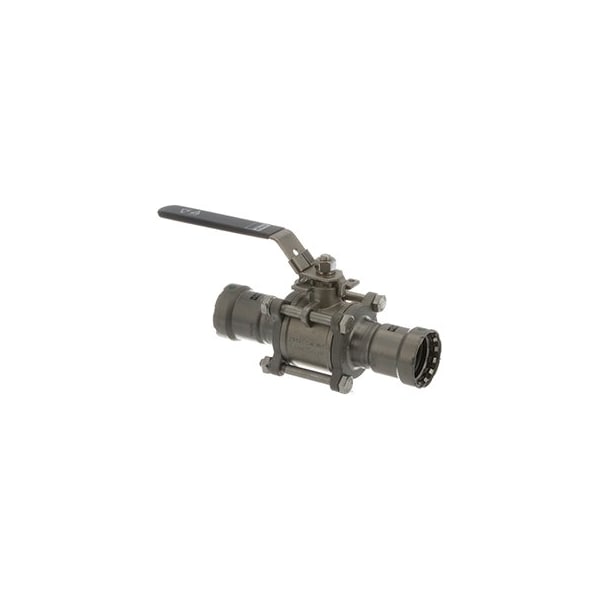

Manual 2-Way Ball Valve, Press, SS

  • Mfr # 28503
  • Zoro # G305311372
product price:
$
267.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 Stainless Steel
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
28503
Zoro #
G305311372
UPC #
691514285030
Country of Origin
China
Ball Material
316 Stainless Steel
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Water
Connection Type
Press x Press
Item
Manual Two-Way Ball Valve
Handle Type
Lever
Standards
ASME B31, IAPMO Z1160, MSS SP-110
Body Material
Stainless Steel
Seat Material
PTFE
Features
Adjustable Packing Nut, Blowout-proof Stem, ISO 5211 Mounting Pad, Reinforced PTFE Seats, Smart Connect Technology
Max. Pressure
250 PSI
Compliance
MSS SP-110 ASME B31 IAPMO Z1157
Seal Material
FKM
Stem Material
Stainless Steel
Handle Material
Stainless Steel
Temp. Range
0 Degrees F to 250 Degrees F
Stem Type
Blowout Resistant
Vented Ball Valve
Non-Vented
Connection Type - Side 1
Press
Connection Type - Side 2
Press
Handle - Locking
Locking
Vacuum Service Rating
-29.2 in Hg
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
0 Degrees F
Color - Valve Handle
Black
3-A Standard Compliance
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Included Mounting
ISO 5211 Actuator Mounting Pad
Operating Temperature - Maximum
250 Degrees F
Valve Construction
Three-Piece
Maximum Pressure - Operating
250 psi
Valve Body Style
Straight

Description

Manual Two-Way Ball Valve, Body Material Stainless Steel, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Locking
