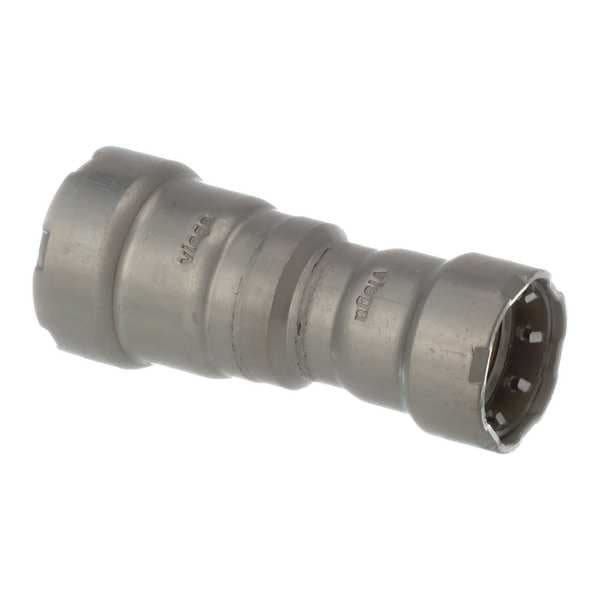

Strt, Steel, Press-fit3/4", Press-fit1/2"
Mfr # 25931
Zoro # G103964374
product price:Â
$
25.19
/ea
Sold in multiples of 5 for $125.95
Key Features
Specific Fitting Shape
Straight Reducing Connector
Standards
ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, CRN 23019.5 A/B/C, FM Class 1920, IAPMO PS 117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
Fitting Material
Carbon Steel
Resistance Properties
Corrosion-Resistant
Finish/Coating
Zinc Nickel-Plated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 25931
- Zoro #
- G103964374
- UPC #
- 691514259314
- Country of Origin
- Germany
- Item
- Crimp Fitting
- Specific Fitting Shape
- Straight Reducing Connector
- Standards
- ANSI/CAN/UL 213, ASME B31.1, ASME B31.3, ASME B31.9, ASTM F3226, CRN 23019.5 A/B/C, FM Class 1920, IAPMO PS 117, ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13R
- Fitting Material
- Carbon Steel
- Resistance Properties
- Corrosion-Resistant
- Finish/Coating
- Zinc Nickel-Plated
- Fitting Side A Connection Type
- Press-Fit
- Fitting Side B Connection Type
- Press-Fit
- Fitting Shape
- Straight
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Maximum Operating Temperature
- 250 Degrees F
- O-Ring Material
- HNBR
- Maximum Operating Pressure
- 200 psi
- Application
- Gas and Fuel Oil
- Minimum Operating Temperature
- 0 Degrees F
- Operating Temperature - Minimum
- 0 Degrees F
- Finish
- Zinc Nickel-Plated
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Side 1 Connection Type
- Press-fit
- Connector Type
- Reducer
- For Media Type
- Potable Water
- Fitting Side 2 Connection Type
- Press-fit
- Operating Pressure - Maximum
- 200 psi
Description
Crimp Fitting, Application Gas and Fuel Oil, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 3/4 in, Fitting Side B Pipe Size 1/2 in, O-Ring Material HNBR, Specific Fitting Shape Straight Reducing Connector, Finish/Coating Zinc Nickel-Plated, Overall Length 3 7/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi
