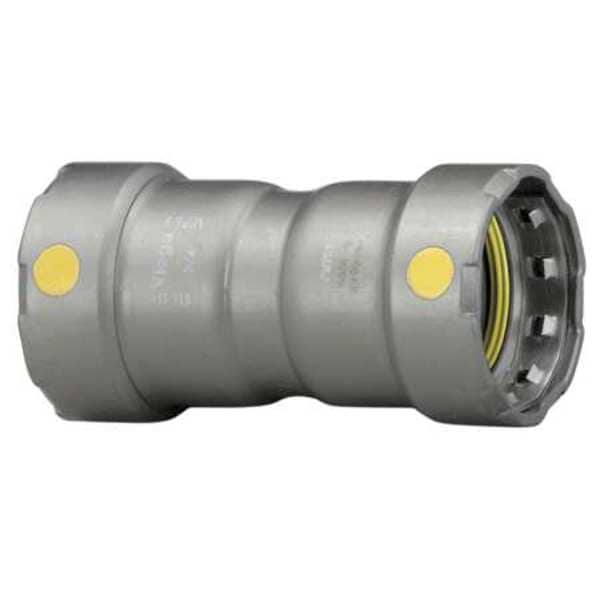

Viega MegaPressG coupling With stop, 1" x 1"

  • Mfr # 25011

  • Zoro # G5003573

product price:  $31.69
/ea

Key Features

Tube Fitting Material
Carbon Steel
Specific Fitting Shape
Straight Connector
Fitting Connection Type
Press x Press
Tube Size
1 in
Pipe Size - Pipe Fitting
1 in x 1 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
25011
Zoro #
G5003573
UPC #
691514250113
Country of Origin
Germany

Dimensions

Tube Size
1 in
Pipe Size - Pipe Fitting
1 in x 1 in
Pipe Size (Fittings)
1" x 1"
Fitting Side A Pipe Size
1 in
Overall Length
3 1/4 in
Fitting Side B Pipe Size
1 in
Fitting Side 2 Pipe Size
1 in
Fitting Side 1 Pipe Size
1 in

Details

Item
Crimp Coupling Fitting
Tube Fitting Material
Carbon Steel
Specific Fitting Shape
Straight Connector
Fitting Connection Type
Press x Press
Standards
ABS, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
Pipe Fitting Connection Type
Press x Press
Basic Pipe Fitting Shape
Coupling
Basic Pipe Fitting Material
Metal
Specific Pipe Fitting Shape
Coupling
Compliance
ABS: American Bureau of Shipping, CRN: 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO ANSI LC4/CSA 6.32, ICC-ES PMG-1036
Temp. Range
-40 Degrees to 180 Degrees F
Max. Pressure
125 psi
Fitting Material
Steel
Finish/Coating
Zinc Nickel-Plated
Fitting Side A Connection Type
Press-Fit
Resistance Properties
Chemical-Resistant, Heat-Resistant, Oil-Resistant
Fitting Side B Connection Type
Press-Fit
Minimum Operating Temperature
40 Degrees F
Includes Center Stop
Rolled Center Stop
Maximum Operating Pressure
125 psi
O-Ring Material
HNBR
Fitting Shape
Straight
Application
Air, Fuel, Natural Gas
Maximum Operating Temperature
180 Degrees F
Fitting Side 1 Connection Type
Press-fit
Center Stop Type
Rolled Center Stop
Connector Type
Coupling
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
40 Degrees F
Operating Pressure - Maximum
125 psi
For Media Type
Compressed Air, Fuels, Gases
Finish
Zinc Nickel-Plated
Fitting Side 2 Connection Type
Press-fit

Description

Crimp Coupling Fitting, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Steel, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1 in, O-Ring Material HNBR, Specific Fitting Shape Straight Connector, Finish/Coating Zinc Nickel-Plated, Overall Length 3 1/4 in, Includes Center Stop Rolled Center Stop, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 125 psi

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
