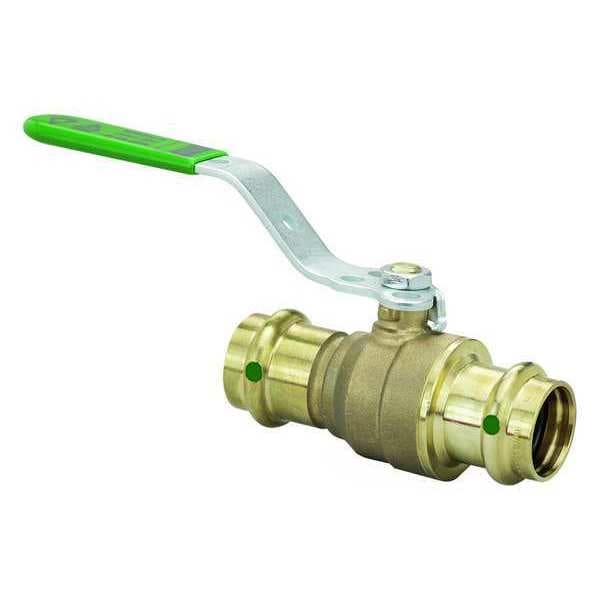

Viega ProPress ball valve, 1/2" x 1/2"

  • Mfr # 79920

  • Zoro # G6096395

product price:
$
31.49
/ea

Key Features

Ball Material
Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
79920
Zoro #
G6096395
UPC #
691514799209
Country of Origin
Germany
Ball Material
Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Potable Water
Connection Type
Press x Press
Item
Ball Valve
Stem Type
Blowout Resistant
Standards
13D and 13R: Fire Sprinkler, CRN, CSA, FM Listed, IAPMO: Uniform Plumbing Code, ICC, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, PHCC: National Standard Plumbing Code, UL Listed
Ball Valve Product Group
Manual
Body Material
Bronze
Features
Smart Connect, Zero Lead
Seat Material
PTFE
Max. Pressure
200 PSI CWP
Stem Material
Brass
Temp. Range
0 Degrees F to 250 Degrees F
Handle Type
Lever
Handle Material
Metal
Compliance
ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Seal Material
EPDM
Products By Industry
General Approach
Color - Valve Handle
Green
Vacuum Service Rating
-29.2 in Hg
Maximum Pressure - Combustible Gas
Not Rated
Handle - Locking
Non-Locking
NSF Certifications for Food and Drinking Water
NSF 61
Vented Ball Valve
Non-Vented
Connection Type - Side 1
Press
Connection Type - Side 2
Press
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
250 Degrees F
Valve Series
ProPress
Valve Construction
Two-Piece
Valve Body Style
Straight
Maximum Pressure - Operating
200 psi

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
