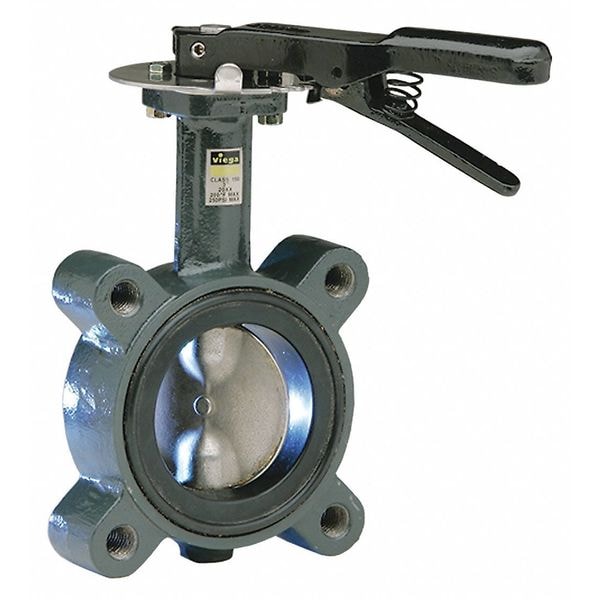

Viega ProPress butterfly valve, 4" - 8

  • Mfr # 22076

  • Zoro # G0789503

product price:  $261.99
/ea
Free Shipping & Returns

Key Features

Style
Semi-Lug
Body Material
Ductile Iron
Max. Water Pressure
200 psi
Handle Type
Lever
Liner Material
EPDM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22076
Zoro #
G0789503
UPC #
691514220765
Country of Origin
China

Dimensions

Pipe Size
4 in
Bolt Circle Dia.
5/8 in
Nominal Valve Size
4 in
Handle Length
9.06 in

Details

Item
Butterfly Valve
Style
Semi-Lug
Body Material
Ductile Iron
Max. Water Pressure
200 psi
Handle Type
Lever
Liner Material
EPDM
Number of Bolt Holes
8
Standards
13D, 13R, CRN, CSA, FM, IAPMO, ICC, NFPA 13, NSF/ANSI 372, PHCC, UL Listed
Temp. Range
0 Degrees to 250 Degrees F
Disc Material
316 Stainless Steel
Seal Material
EPDM
Connection Type
Lug
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
0 Degrees F
Vacuum Service Rating
Not Rated
Coefficient of Volume (Cv)
760
For Media
Water
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
250 Degrees F
Number of Stop Positions
10
Disc Alignment
Concentric
Includes Disc Position Indicator
No Disc Position Indicator
Number of Flange Bolt Holes
8
Stem Material
Stainless Steel
Maximum Pressure - Operating
200 psi
ANSI Flange Class
Class 150
Valve Series
2873.81

Description

Butterfly Valve, Semi-Lug Style, Body Material Ductile Iron, Max. Water Pressure 200 psi, Pipe Size 4 in, Temp. Range 0 Degrees to 250 Degrees F, Liner Material EPDM, Disc Material 316 Stainless Steel, Handle Type Lever, Number of Bolt Holes 8, Bolt Circle Dia. 5/8 in, Standards 13D, 13R, CRN, CSA, FM, IAPMO, ICC, NFPA 13, NSF/ANSI 372, PHCC, UL Listed

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
