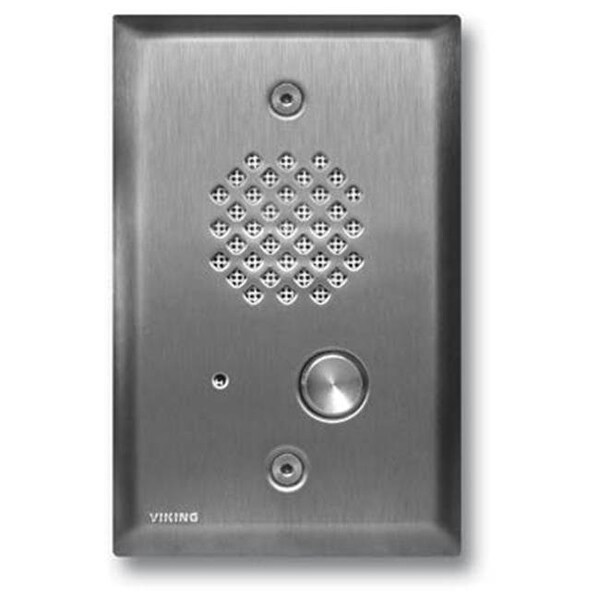

Viking Electronics E-40SS Viking Door Box Stainless Stee

Viking Electronics VK-E-40SS Viking Electronics Door Box Stainless Steel. Compact size: Front panel is the size of a typical single gang mid size wallplate. Mounting: Flush mounts in any single gang (1.7 in deep minimum) electrical box (single gang old work rough-in box included) or surface mounts in a Viking model VE-3x5 (purchased separately). Available in 5 standard faceplate finishes: Brushed Stainless Steel Oil Rubbed Bronze Polished Brass Satin Black and Satin W.

Compact size: Front panel is the size of a typical single gang mid- size wall plate.

Mounting: Flush mounts in any single gang (1.7” deep minimum) electrical box (single gang old work rough-in box included) or surface mounts in a Viking model VE-3x5 (not included).

Available in 5 standard faceplate finishes: Brushed Stainless Steel Oil Rubbed Bronze Polished Brass Satin Black and Satin White.

PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes.

Weather Resistant Features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS Stainless Steel faceplate).

Optional Enhanced Weather Protection (EWP) available.

Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate stainless steel push button stainless steel speaker screen scratch resistant powder coating hex drive mounting screws.

Telephone line powered.

Microphone and speaker volume controls.

Programmable Intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out.

Selectable auto answer feature for monitoring.

Programmable VOX (mic/speaker) switching speed.

Power: Telephone line powered (18 VDC/20mA minimum).

Dimensions: Faceplate: 123.8mm x 79.4mm x 4.6mm (4.875” x 3.125” x 0.18”) Rough-in box (Allied Molded 9331): 86.4mm x 61mm x 63.5mm (3.4” x 2.4” x 2.5”).

Operating Temperature: -32° C to 54° C (-25° F to 130° F).

Humidity: Standard model: 5% to 95% non-condensing humidity EWP model: up to 100% humidity.

Speaker Volume: Approximately 62db maximum 1m.

Ring Voltage: 25V AC RMS minimum (for auto answer).

CPC Disconnect Time: 300ms minimum.

REN: 0.8A.

Connections: (2) gel-filled butt connectors.

Dimensions: 8.5 x 5.8 x 4.2 inches.
