Viking Electronics VK-K-1900-8 Viking Hot-Line Stainless Stee

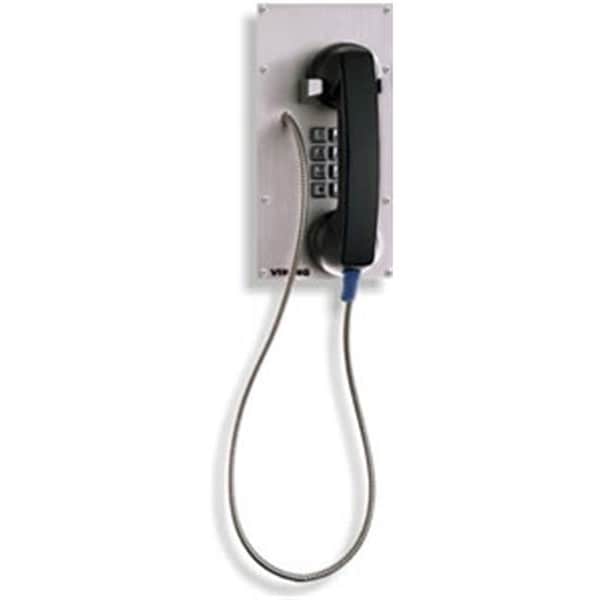

Attractive Vandal Resistant Hot-Line Phone with Built-in Keypad. The K-1900-8 panel phone can either auto-dial a phone number each time the handset is lifted be used as a multi-number auto-dialer or be used as a standard (dumb) phone. The unit will Touch Tone or pulse dial and will not auto-dial on incoming calls.
The K-1900-8 housing consists of a heavy gauge stainless steel panel a metal Touch Tone keypad an armored cable a heavy duty handset and an all metal cradle.
The K-1900-8 can be easily Touch Tone programmed at the shop or installation site. All programming is stored in non-volatile E2 memory.

Catalog sales.

Kiosks.

Courtesy and customer service phones.

Automated tellers (ATM’s).

Hot-line reservation phones.

Security and emergency phones.

Replaces leased ringdown circuits.

Gate/entrance communication in noisy locations (diesel trucks factory noise etc.).

Auto dials 1 (up to 32 digits) programmable speed dial number.

Multi-number dialer mode adds 5 (up to 16 digits) speed dial numbers.

Touch Tone or pulse dialing.

Touch Tone keypad.

Non-volatile memory (no batteries required).

Operates on analog PABX and key system extensions or analog Centrex and C.O. lines.

Programmable 6 digit security code.

Touch Tone programmable.

Vandal resistant features: 1/8” thick stainless steel panel armored cable metal cradle and sealed metal keypad.

Programmable pre-dial pause.

Blocks fraudulent calls from hand held pocket dialers.

Limited toll restriction in dumb phone mode.

Hearing aid compatible amplified handset with sealed push button volume control.

Optional Enhanced Weather Protection (EWP).

Power: Telephone line powered (20V DC/18mA minimum).

Dimensions Overall: 5” x 10” x 4”.

Operating Temperature: 0°C to 32°C (32°F to 90°F).

Humidity: Standard - 5% to 95% non-condensing EWP - Up to 100% condensing.

Panel Material: .125 inch thick stainless steel.

Handset Cable Length: Standard K-1900-8 - 86cm (34”) K-1900-8-EWP - 137cm (54”).

Mounting: Flush mount or surface mount with optional VE-5x10.

Dial Speed: Touch Tone - Normal = 120ms on/off Fast = 50ms on/off; Pulse - Normal = 10 pps Fast = 20 pps.

Connections: (2) gel-filled butt connectors.
