This item is Discontinued.

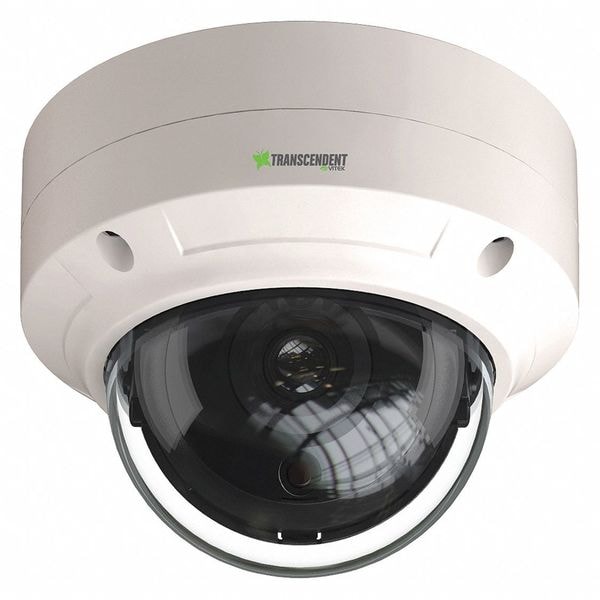

Vitek Camera, Turret, Fixed Lens, 12VDC VTD-THD5R3

Camera, Turret, Fixed Lens, 12VDC (Discontinued)

  • Mfr # VTD-THD5R3
  • Zoro # G6283048
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VTD-THD5R3
Zoro #
G6283048
UPC #
814850011594
Country of Origin
China

Dimensions

IR Illuminator Wavelength
850 nm
Depth (In.)
4 in
Focal Length (mm)
3.6 mm
Length (In.)
4 in
Height (In.)
3 in
Width (In.)
3 in
Dia. (In.)
3 1/2 in
Minimum Focal Length
2.8 mm
Maximum Focal Length
3.6 mm
Overall Diameter
4 3/4 in
Overall Height
3 1/2 in

Details

Item
Camera
Includes
Drill Template, Screws
Resolution
5MP
Features
2D Noise Reduction
Power Supply
Not included
Voltage
12V DC
Illumination
Yes
Exposure Conditions
-40 Degrees to 140 Degrees F
For Use With
VT-TCNMT, VT-TFMT-S, VT-TJB03A, VT-TPLMT, VT-TR4K, VT-TR4VPK, VT-TWMT-3
Display
Color
Min. Light Level (Lux)
0 lux
Lens
Fixed
Camera Body Color
White
Luminance Factor
0 lux (B/W), 0.001 lux AGC On (Color)
S/N Ratio (dB)
More Than 52
Line Resolution
5 MP
Indoor/Outdoor
Indoor, Outdoor
Mount
Ceiling, Surface, Wall
Detection Range
Variable
Power Consumption
120 mA (IR On), 360 mA (IR Off)
Scanning
Progressive
Digital Video Camera Image Sensor
1/2.5 CMOS
Pixels
2560 x 1936
Type
Turret
Day/Night Capable
Day/Night
IP Rating
IP67
Camera Design
Dome
Standards
NDAA Compliant
Output Type
AHD, CVBS, CVI, TVI
Minimum Operating Temperature
-4 Degrees F
Includes Power Supply
No
Color Display
Color
Image Sensor
1/2.5 CMOS
Night Capable
Day and Night
Maximum Detection Distance
65 ft
Lens Type
Fixed
Input Type
No Inputs Included
Resistance Properties
Weather Resistant
S/N Ratio
More than 52dB
Minimum Light Level
0.01 lux
Body Color
White
Maximum Operating Temperature
122 Degrees F
Indoor/Outdoor Usage
Indoor, Outdoor
Operating Voltage
12V DC

Description

Camera, Body Color White, Maximum Focal Length 3.6 mm, Minimum Focal Length 2.8 mm, Camera Design Dome, Mounting Location Ceiling, Wall, Color Display Color, Maximum Detection Distance 65 ft, Features 2D Noise Reduction, Lens Type Fixed, Resolution 5MP, For Use With VT-TCNMT, VT-TFMT-S, VT-TJB03A, VT-TPLMT, VT-TR4K, VT-TR4VPK, VT-TWMT-3, Image Sensor 1/2.5 CMOS, Includes Drill Template, Screws, Pixels 2560 x 1936, Indoor/Outdoor Usage Indoor, Outdoor, Input Type No Inputs Included
