  11. 1-1/2" Clamp Stainless Steel Sanitary Ball Valve 2-Way
Shop All Ball Valves
Vne

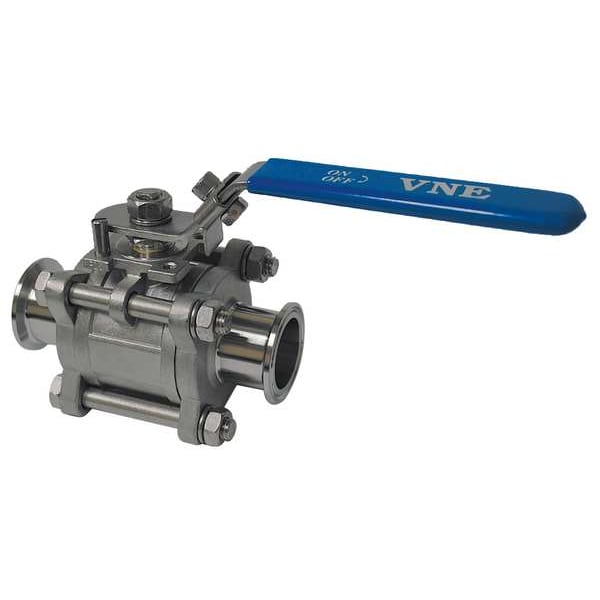

1-1/2" Clamp Stainless Steel Sanitary Ball Valve 2-Way

original price: $248.05
14% off
new price: $211.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material 316 Stainless Steel
  • Body Style 2-Way
  • Tube Size 1-1/2"
  • Overall Length 5-1/2"
  • Standards Seats In Compliance With FDA Regulations
See all product information

Product Information

  • Brand Vne
  • MFR # EG90CC-61.5
  • Zoro # G4359354
  • Country of Origin Taiwan, Province of China
  • Category Ball Valves

Dimensions

Pipe Size 1 1/2"
Tube Size 1-1/2"
Overall Length 5-1/2"
Handle Height 3.3 in
Nominal Valve Size 1 1/2 in
Handle Length 7.67 in
Ball Opening Size 1.38 in
Connection Size - Side 2 1 1/2 in
Connection Size - Side 1 1 1/2 in

Details

Body Material 316 Stainless Steel
Body Style 2-Way
Item Sanitary Ball Valve
Standards Seats In Compliance With FDA Regulations
Max. Pressure 1000 psi
Surface Finish 20 RA I.D.
Temp. Range -65 Degrees to 320 Degrees F
Connection Type Clamp x Clamp
Valve Structure 3-Piece
Ball Material 316 stainless steel
Features ISO 5211 Mounting Pad
Handle Material AISI-304 Stainless Steel
Ball Valve Basic Body Material Stainless Steel
Stem Material 316 Stainless Steel
Handle Type Pad Lockable
Stem Type Blowout Proof
Port Full
Body Seal Material PTFE
Ball Valve Product Group Manual
Seat Material PTFE
Seal Material PTFE
Ball Port Style Full Port
Connection Type - Side 1 Clamp
Connection Type - Side 2 Clamp
Coefficient of Volume (Cv) 193
For Media Combustible Gases, Natural Gas, Steam, Water
Maximum Pressure - Operating 1,000 psi
Valve Body Style Straight
Maximum Pressure - Steam 60 psi
3-A Standard Compliance Meets 3A Sanitary Standards
Maximum Pressure - Combustible Gas Not Rated
Operating Temperature - Maximum 320 Degrees F
Valve Construction Three-Piece
Valve Ways 2-Way
Included Mounting ISO 5211 Actuator Mounting Pad
Operating Temperature - Minimum -65 Degrees F
Average Surface Roughness (Ra) 20 Ra micron-in
Handle - Locking Locking
Color - Valve Handle Blue
Vented Ball Valve Non-Vented

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Combustible Gases, Natural Gas, Steam, Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Meets 3A Sanitary Standards, Average Surface Roughness (Ra) 20 Ra micron-in, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 60 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material 316 Stainless Steel
