  11. Air Blow Check Valve, 13.625 in Overall L

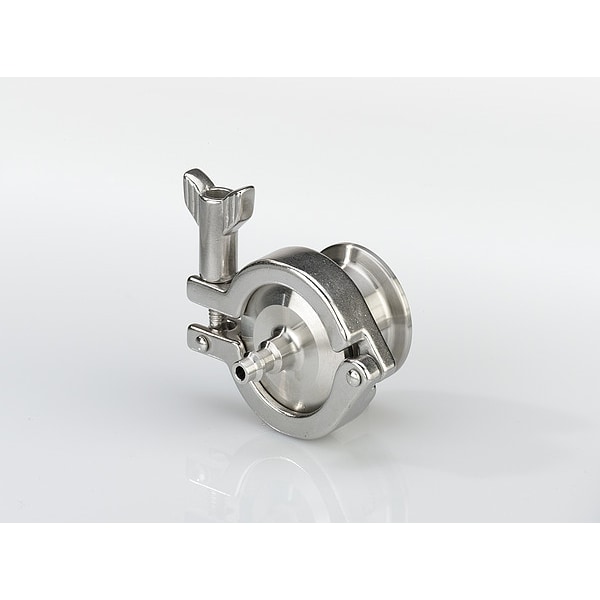

Vne Air Blow Check Valve, 13.625 in Overall L EG62A-6L3.0 - main

Air Blow Check Valve, 13.625 in Overall L

  • Mfr # EG62A-6L3.0

  • Zoro # G108363165

product price: $398.99
/ea
Free Shipping & Returns

Key Features

Tube Size
3 in
Connection
Clamp
Body Material
316L Stainless Steel
Seal Material
EPDM
Overall Length
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EG62A-6L3.0
Zoro #
G108363165
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
3 in
Overall Length
2.5 in
Connection Size - Side 2
3 in
Connection Size - Side 1
3 in
Nominal Valve Size
3 in

Details

Connection
Clamp
Body Material
316L Stainless Steel
Seal Material
EPDM
Surface Finish
32 RA I.D./O.D
Temp. Range
0 to 200 Degrees F
Material of Construction
T316L Stainless Steel
Item
Air Blow Check Valve
Spring Material
316L Stainless Steel
Standards
FDA
Seat Material
EPDM
Maximum Pressure - Operating
60 psi
Check Mechanism
Poppet
Connection Type - Side 2
Air Line Quick Disconnect
For Media
Fluids
Mounting Orientation
Horizontal, Vertical
Check Mechanism Material
316L Stainless Steel
Silent Check
Standard
Operating Temperature - Minimum
0 Degrees F
Connection Type - Side 1
Clamp
Average Surface Roughness (Ra)
32 micron-in
Vacuum Service Rating
Not Rated
Includes Counterweight
No Counterweight
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
200 Degrees F
3-A Standard Compliance
Meets 3A Sanitary Standards
Valve Body Style
Inline
Valve Series
EG62A-6L

Description

Hex Size Not Applicable, Standards FDA

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
