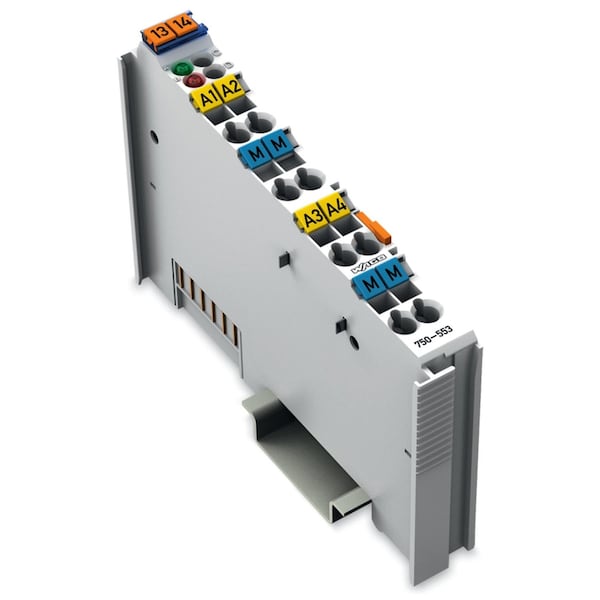

Analog Output Module
- Mfr # 750-553
- Zoro # G123561775
product price:Â
$
514.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 750-553
- Zoro #
- G123561775
- UPC #
- -
- Country of Origin
- Germany
Description
This is a 4-channel analog output module from the WAGO I/O System 750 designed to generate standard industrial current signals (0-20 mA). It is used in automation systems to control actuators, valves, and process devices with precise analog outputs. Specifications: -Model: 750-553 -Type: Analog output module (WAGO I/O System 750) -Function: 4-channel analog current output -Output Signal Range: 0-20 mA DC -Number of Outputs: 4 analog channels -Resolution: 12-bit -Conversion Time: -10 ms (typical) -Output Type: Current (0-20 mA) -Load Impedance: 0-300 ohm / 300-600 ohm (selectable range) -Isolation: 500 V (system/field isolation) -Supply Voltage: 24 V DC (field supply) -System Voltage: 5 V DC (via backplane) -Current Consumption: -60 mA (system side) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Dimensions: 100 x 12 x 69.8 mm
Restrictions
This item has been restricted from sale in the following states:
CA
