Digital Output Module

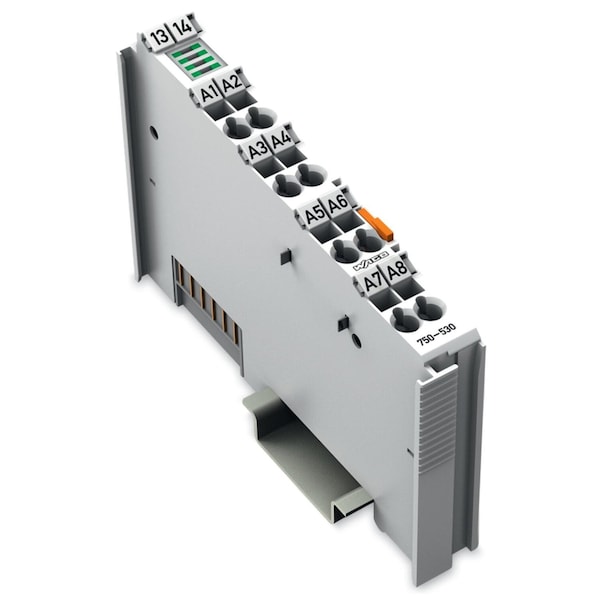

This is an 8-channel digital output module from the WAGO I/O System 750 designed to control 24 V DC field devices such as relays, indicators, and actuators. It provides high-side switching with short-circuit protection and electrical isolation for reliable industrial automation control. Specifications: -Model: 750-530 -Type: Digital output module (WAGO I/O System 750) -Function: 8-channel digital signal output -Output Channels: 8 digital outputs -Output Voltage: 24 V DC -Output Current: 0.5 A per channel -Switching Type: High-side switching -Load Types: Resistive, inductive, lamp loads -Switching Frequency: up to 2 kHz -Short-Circuit Protection: Yes (all outputs) -Isolation: 500 V (system/field isolation) -Internal Bit Width: 8-bit process image -System Supply Voltage: 5 V DC (via backplane) -Field Supply Voltage: 24 V DC (via power jumper contacts) -Current Consumption: -25 mA (system side) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate / Polyamide 6.6 -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Dimensions: 100 x 12 x 69.8 mm
