Fieldbus Coupler

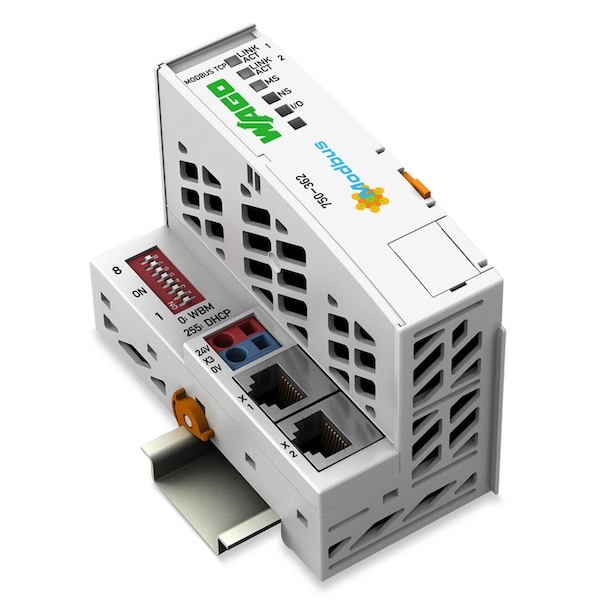

This is a Modbus TCP/UDP fieldbus coupler from the WAGO I/O System 750 series used to connect Ethernet networks with modular I/O modules. It automatically detects connected I/O modules and creates a process image for industrial automation communication. Specifications: -Model: 750-362 -Type: Fieldbus Coupler (Modbus TCP/UDP) -System: WAGO I/O System 750/753 -Communication Protocol: Modbus TCP, Modbus UDP -Ethernet Interface: 2 x RJ-45 ports (10/100 Mbit/s) -Network Function: Integrated switch, line topology support -Node Capacity: Up to 250 modules per node -Process Image: Automatic I/O mapping (inputs/outputs) -IP Configuration: DHCP / BootP / static (DIP switch configurable) -Additional Protocols: HTTP, HTTPS, FTP, SNMP, DNS, DHCP -Supply Voltage: 24 V DC -System Supply Current: -350 mA (typical) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Data Rate: 10/100 Mbit/s Ethernet
