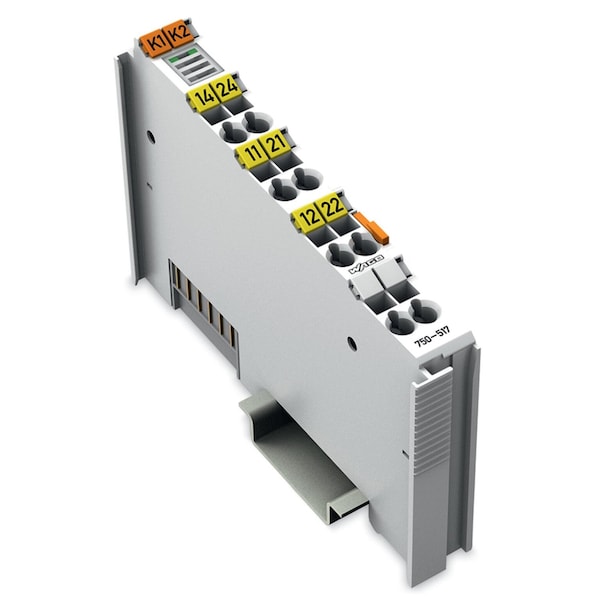

Relay Output Module

This is a 2-channel relay output module from the WAGO I/O System 750 designed to switch electrical loads using potential-free relay contacts. It is used in industrial automation systems to control actuators, motors, and signaling devices with reliable isolation. Specifications: -Model: 750-517 -Type: Relay output module (WAGO I/O System 750) -Function: 2-channel relay switching output -Output Channels: 2 relay outputs (changeover contacts) -Switching Voltage: 250 V AC / 300 V DC -Switching Current: 1 A (AC/DC depending on load) -Contact Type: Potential-free changeover contacts (SPDT) -Response Time: -8 ms (pull-in), -4 ms (drop-out) -Electrical Life: up to 1 x 106 switching cycles (at rated load) -Mechanical Life: up to 5 x 106 switching cycles -Isolation: 1.5 kV (field/system isolation) -Supply Voltage: 24 V DC (via system bus) -System Current Consumption: -90 mA -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate / Polyamide 6.6 -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Dimensions: 100 x 12 x 64 mm
