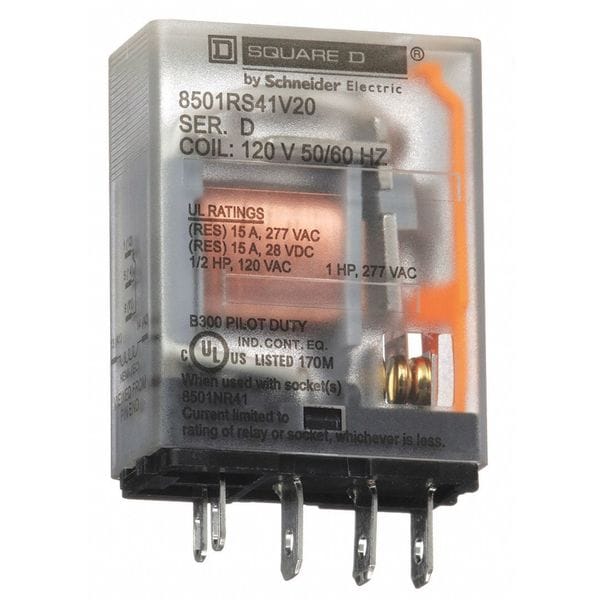

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect 8501RS41V20 - main

Socket, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect

  • Mfr # 8501RS41V20

  • Zoro # G0596136

product price:  $45.99
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8501RS41V20
Zoro #
G0596136
UPC #
785901137030
Country of Origin
China

Dimensions

Overall Height - Relay
1.65 in
Overall Depth
1.65 in
Body Depth
1.07 in
Body Width
0.83 in
Flat Pin Width
0.189 in
Body Height
1.37 in
Width
0.55 in (14 mm)
Depth
1.65 in (41.8 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 120V, 15 A @ 277V
Contact Rating (DC)
15 A @ 28V
Status Indicator
Mechanical Flag
Socket
Mfr. No. 8501NR41
Power Consumption - Relay
1.6 VA
Contact Material
Silver Alloy
Socket Code
L
Standards
CE Certified, CSA Certified, UL Listed
HP @ 120V
1/10 hp
HP @ 240V
1/10 hp
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Features
SPDT through 4PDT, AC or DC operated, Horsepower rated, Socket compatible, Manual operator/ green LED pilot light options, Silver tin oxide contacts
Horsepower @ 120V AC
1/2 hp
Motor Rated
Yes
Sealing
Enclosed
Power Consumption
1.6 VA
Compatible with Manufacturer Model Number
8501NR41, 8501NR41B
Minimum Operating Temperature
-40 Degrees F
Response Time
20 msec
Horsepower @ 240V AC
1/10 hp
Maximum Operating Temperature
131 Degrees F
Maximum Switching Voltage
300V AC, 30V DC
Pin Shape
Flat
Push-To-Test Method
No Button
Series
Square D 8501R Miniature Series
Compatible Manufacturer Part Number
8501NR41, 8501NR41B
Compatible Manufacturer Model Number
8501NR41, 8501NR41B
Manual Operator
Without test button
Breaking Capacity
3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 15 A 120 V AC resistive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 15 A 28 V DC resistive control circuit UL 508
Switching Voltage
300 V AC; 30 V DC
Ambient Temperature Range - Operational
-40 to 131°F (-40 to 55°C)
Shape Of Pins
Spade
Operating Time
20 ms - pick-up || 20 ms - drop-out
Control Circuit Voltage
120 V AC
For Use With
8501NR41
Pilot Light
No indicator
Product Certifications
UL Listed; UL Recognized; CSA; CE

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.189 in, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 120V, 15 A @ 277V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/10 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.07 in, Body Height 1.37 in
