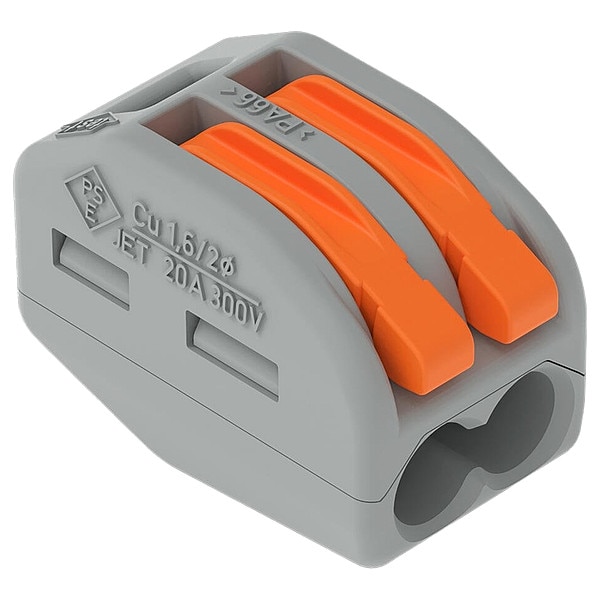

Splice Wire Connector, 12 AWG Max, 2 Port, Gray, Polycarbonate Insulation, 600 V, 20 A, 50 PK
Mfr # 222-412/K194-4045
Zoro # G212175111
product price:Â
$
18.19
/pk of 50, $0.36/ea
Key Features
Type
Splice
Color
Gray
Maximum Wire Size
12 AWG
Minimum Wire Size
28 AWG
Insulation Material
Polycarbonate
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 222-412/K194-4045
- Zoro #
- G212175111
- UPC #
- -
- Country of Origin
- Germany
- Item
- Splice Wire Connector
- Type
- Splice
- Color
- Gray
- Insulation Material
- Polycarbonate
- Maximum Voltage
- 600 V
- Current
- 20 A
- Maximum Operating Temperature
- 85 Degrees C
- Number of Ports
- 2
- UL 94 Flammability Rating
- V-0
- RoHS Compliant
- Yes
- Compatible with Product Type
- Conductor
- Special Features
- Insulation Materials
- Standards
- IEC/EN, UL Listed
- For Conductor Material
- Aluminum, Copper
- Housing Material
- Polycarbonate
- Connector Type
- Lever
- Series
- 222
Description
Wire Connector, Color Gray, For Conductor Material Aluminum, Copper, For Minimum Wire Size - Stranded 28 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 104 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 0.8 in, Overall Width 0.48 in, Connector Type Lever, UL 94 Flammability Rating V-0, Number of Ports 2, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 20 A
