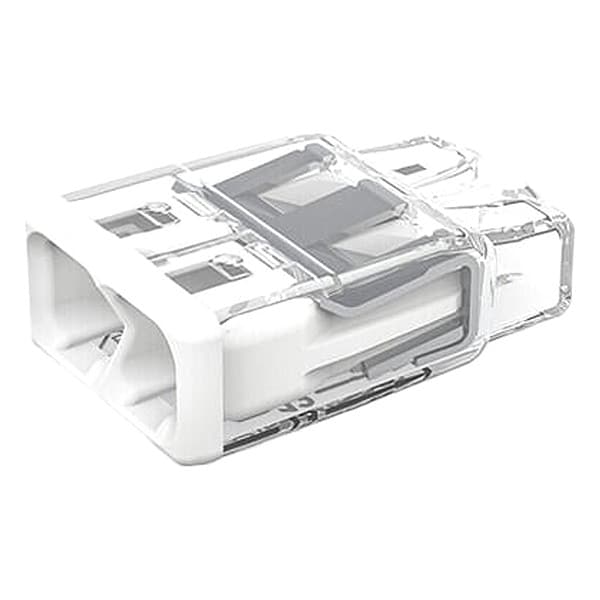

Splice Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A
- Mfr # 2773-402/K000-0008
- Zoro # G912175107
product price:Â
$
4.85
/pk of 10, $0.49/ea
Key Features
Type
Splice
Color
Transparent
Maximum Wire Size
12 AWG
Minimum Wire Size
20 AWG
Insulation Material
Polycarbonate
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2773-402/K000-0008
- Zoro #
- G912175107
- UPC #
- 4055143987509
- Country of Origin
- Germany
- Item
- Splice Wire Connector
- Type
- Splice
- Color
- Transparent
- Insulation Material
- Polycarbonate
- Maximum Voltage
- 600 V
- Current
- 32 A
- Number of Ports
- 2
- UL 94 Flammability Rating
- V-2
- RoHS Compliant
- Yes
- For Conductor Material
- Copper
- Compatible with Product Type
- Solid Conductors, Stranded Conductors
- Standards
- IEC, UL Listed
- Special Features
- Connection Terminates up to Eight Solid and Stranded Conductors
- Maximum Operating Temperature
- 105 Degrees C
- Minimum Operating Temperature
- -40 Degrees C
- Housing Material
- Polycarbonate
- Connector Type
- Push-In
- Series
- 2773
- Wire Color
- Transparent
Dimensions
- Maximum Wire Size
- 12 AWG
- Minimum Wire Size
- 20 AWG
- Overall Length
- 0.73 in
- Overall Width
- 0.45 in
- For Maximum Wire Size - Stranded
- 12 AWG
- Overall Height
- 0.24 in
- For Minimum Wire Size - Stranded
- 18 AWG
- Strip Length
- 1/2 in
- For Maximum Wire Size - Solid
- 12 AWG
- For Minimum Wire Size - Solid
- 20 AWG
- Wire Rope Length
- 0.73 in
- Length
- 0.73 in
Description
Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 18 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.24 in, Overall Length 0.73 in, Overall Width 0.45 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant No, Standards IEC, UL Listed
