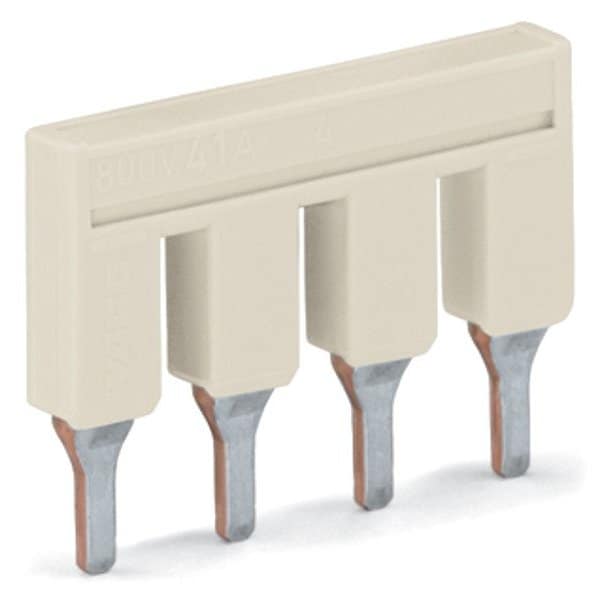

Terminal Block, 1.094" L, 1.09" W, Gray
Mfr # 2006-404
Zoro # G822935808
product price:Â
$
3.19
/ea
Key Features
Standards
IEC Approved, RoHS Compliant
Color
Gray
Contact Material
Copper
Overall Depth
0.748 in
Number of Ways
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2006-404
- Zoro #
- G822935808
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Depth
- 0.748 in
- Thickness
- 0.161 in
- Overall Width
- 1.09 in
- Wire Rope Length
- 1.094 in
- Overall Length
- 1.094 in
- Length
- 1.094 in
Details
- Standards
- IEC Approved, RoHS Compliant
- Color
- Gray
- Contact Material
- Copper
- Number of Ways
- 4
- Special Features
- Insulated
- Compatible with Series
- 2006, 2106, 2206
- Number of Poles
- 4
- Compatible with Product Type
- Carrier Terminal Block, Disconnect Terminal Block, Fuse Terminal Block, Ground Terminal Block, Through Terminal Block
- Current
- 41 A
- Insulation Material
- Polymaide 66
- Item
- Terminal Block
- Connection Orientation
- Horizontal
- Compatible Manufacturer Model Number
- 2006-1201,2006-1202,2006-1203,2006-1204,2006-1205,2006-1207,2006-1208,2006-1611,2006-1612,2006-1621,2006-1631,2006-1661,2006-1664,2006-1671,2006-1674,2006-1681,2006-1681/1000-413,2006-1681/1000-414,2006-1681/1000-429,2006-1681/1000-434,2006-1681/1000-435,2006-1681/1000-449,2106-1201,2106-1204,2106-1207,2106-1301,2106-1304,2106-1307,2106-5201,2106-5204,2106-5207,2106-5301,2106-5304,2106-5307,2206-1201,2206-1201/000-053,2206-1203,2206-1204,2206-1205,2206-1207,2206-1301,2206-1301/000-053,2206-1303,2206-1304,2206-1305,2206-1307,2206-1401,2206-1401/000-05,2206-1402,2206-1403,2206-1404,2206-1405,2206-1407,2206-1611,2206-1611/1000-541,2206-1611/1000-542,2206-1611/1000-836,2206-1611/1000-867,2206-1612,2206-1615,2206-1621,2206-1621/1000-541,2206-1621/1000-542,2206-1621/1000-836,2206-1621/1000-859,2206-1621/1000-867,2206-1622,2206-1624,2206-1631,2206-1631/1000-541,2206-1631/1000-542,2206-1631/1000-836,2206-1631/1000-859,2206-1631/1000-867,2206-1661,2206-1662,2206-1663,2206-1664,2206-1671,2206-1672,2206-1673,2206-1674,2206-1675,2206-1681,2206-1681/1000-413,2206-1681/1000-414,2206-1681/1000-429,2206-1681/1000-434,2206-1681/1000-435,2206-1681/1000-449,2206-7111,2206-7114
Description
Terminal Block, Compatible with Series 2006, 2106, 2206, Connection Orientation Horizontal, Contact Material Copper, Current 41 A, Insulation Material Polymaide 66, Number of Poles 4, Overall Depth 0.748 in, Overall Length 1.094 in, Overall Width 1.09 in, Color Gray
