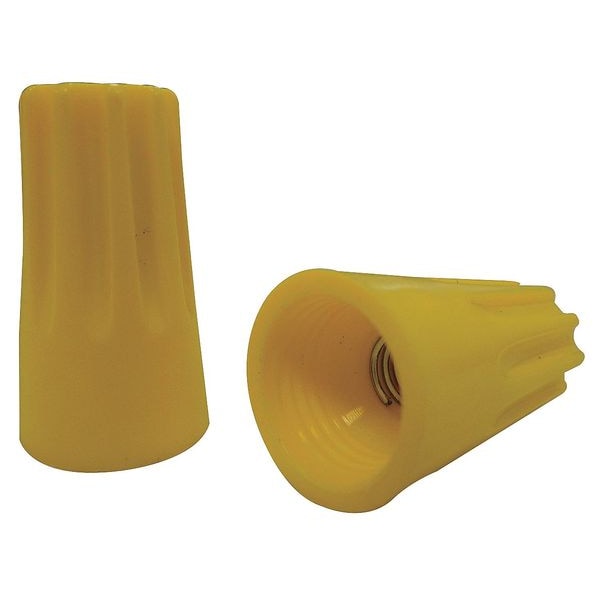

Twist-On Wire Connector, 8 AWG Max, Yellow, Thermoplastic Insulation, 600 V, 100 PK
- Mfr # 5UYJ5
- Zoro # G2265821
product price:Â
$
9.89
/pk of 100, $0.10/ea
Key Features
Type
Twist-On
Color
Yellow
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(3) 20 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5UYJ5
- Zoro #
- G2265821
- UPC #
- 190735599815
- Country of Origin
- China
- Item
- Twist-On Wire Connector
- Type
- Twist-On
- Color
- Yellow
- Insulation Material
- Thermoplastic
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (3) 20 AWG
- Maximum Wire Combination
- (2) 12 AWG with (2) 14 AWG
- Maximum Operating Temperature
- 221 Degrees F
- UL 94 Flammability Rating
- V-2
- RoHS Compliant
- Yes
- Wire Connector Style
- Standard
- Application
- General Purpose
- Series
- P4
- Standards
- CSA Certified: 175604UL Listed: E113650
- Compatible Installation Tool Model Number
- No. 4
- Compatible with Product Type
- Light Fixtures and House Wiring
- Maximum Conductors
- 7
- For Conductor Material
- Copper
- Special Features
- Deep Skirt Protects against Flash-Over, Square-Wire Spring Creates Secure Connections
- Material
- Steel
- Termination Style
- Twist-On
- Contact Material
- Steel
- Wire Color
- Yellow
Dimensions
- Maximum Wire Size
- 8 AWG
- Minimum Wire Size
- 22 AWG
- Height
- 1.25 in
- Width
- 0.55 in
- Outside Diameter
- 0.43 in
- Strip Length
- 3/8 in
- Overall Width
- 0.55 in
- Maximum Single Wire Size
- 8 AWG
- Overall Height
- 0.97 in
- Minimum Single Wire Size
- 22 AWG
Description
Twist On Wire Connector, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 20 AWG, Maximum Wire Combination (2) 12 AWG with (2) 14 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 7, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Standard, Compatible Installation Tool Model Number No. 4, Compatible with Product Type Light Fixtures & House Wiring
