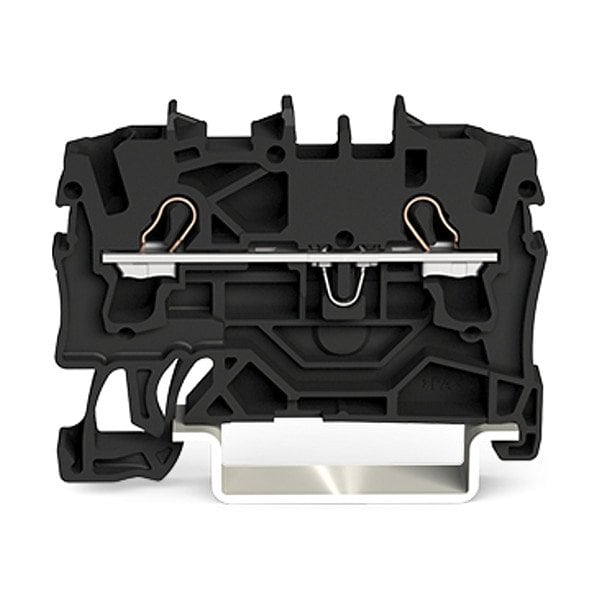

Terminal Block, 1.9" L, 1.55" W, 800V, Black

  • Mfr # 2002-1205

  • Zoro # G122935751

product price:  $1.89
/ea

Key Features

For Channel Rail Size
35 mm
For Conductor Material
Copper
Overall Width
1.55 in
Housing Material
Polyamide 66
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1205
Zoro #
G122935751
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Wire Rope Length
1.9 in
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
Overall Length
1.9 in

Details

For Conductor Material
Copper
Housing Material
Polyamide 66
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Circuit Protection Type
None
Item
Terminal Block
UL 94 Flammability Rating
V-0
Series
2002
For Conductor Type
Solid, Stranded
Terminal Block Type
Pass-Through
Number of Tiers
1
Connection Type
Push-In
Number of Poles
1
Minimum Operating Temperature
-60 Degrees C
Maximum Voltage
800 V
Special Features
2 Jumper Slots, Front-Entry Wiring
Number of Connections
2
Current
24 A
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Housing Color
Black

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Black, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 1.9 in, Overall Width 1.55 in
