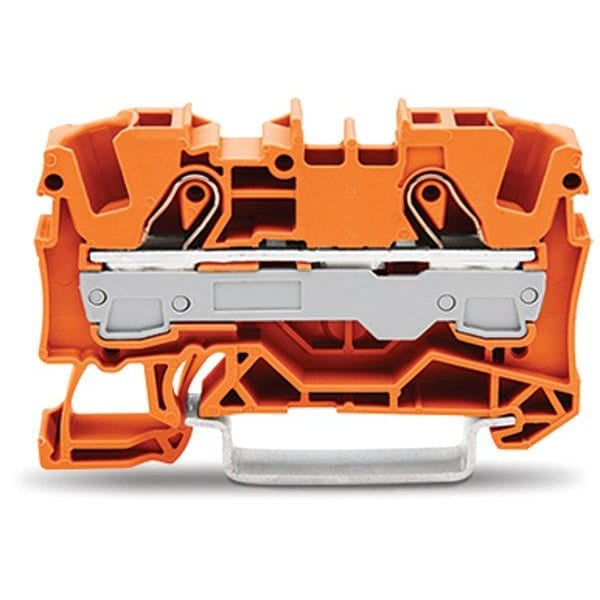

Terminal Block, 2.26" L, 1.55" W, 800V

  • Mfr # 2006-1202

  • Zoro # G222935750

product price:  $3.59
/ea

Key Features

For Conductor Type
Solid, Stranded
Terminal Block Type
Pass-Through
Connection Type
Push-In
Current
41 A
Overall Width
1.55 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2006-1202
Zoro #
G222935750
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
1.55 in
For Channel Rail Size
35 mm
Strip Length
19/32 in
Overall Depth
0.29 in
Wire Rope Length
2.26 in
For Minimum Wire Size
20 AWG
For Maximum Wire Size
8 AWG
Overall Length
2.26 in

Details

For Conductor Type
Solid, Stranded
Terminal Block Type
Pass-Through
Connection Type
Push-In
Current
41 A
Housing Color
Orange
Series
2006
Number of Poles
1
Item
Terminal Block
UL 94 Flammability Rating
V-0
Number of Tiers
1
Special Features
2 Jumper Slots, Front-Entry Wiring
Maximum Voltage
800 V
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Number of Connections
2
Housing Material
Polyamide 66
Circuit Protection Type
None
Minimum Operating Temperature
-60 Degrees C
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E 185892 (AEx eb IIC Gb, Ex eb IIC Gb), ATEX EN 60079 PTB 05 ATEX 1030 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL 7925/1, CCA IEC 60947 71-122840 REV.1, CCCEx GB/T 3836.3 2020312313000231 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 1543858, DNV GL TAE00001V2, IEC 60079 TUV 12.1310 U, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
For Conductor Material
Copper

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Orange, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.26 in, Overall Width 1.55 in
