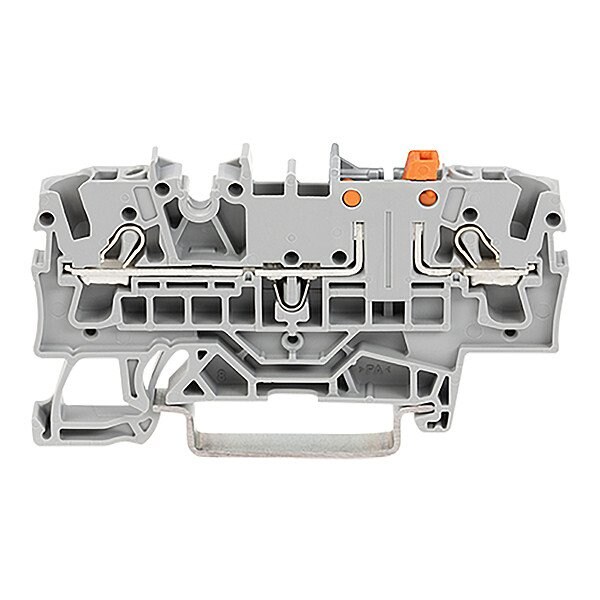

Terminal Block, 2.6" L, 400V, Gray

  • Mfr # 2002-1671

  • Zoro # G122935645

product price:  $6.19
/ea

Key Features

Current
16 A
Strip Length
15/32 in
Housing Color
Gray
Minimum Operating Temperature
-60 Degrees C
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1671
Zoro #
G122935645
UPC #
-
Country of Origin
China

Dimensions

Strip Length
15/32 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Wire Rope Length
2.6 in
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
Overall Length
2.6 in

Details

Current
16 A
Housing Color
Gray
Minimum Operating Temperature
-60 Degrees C
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Maximum Voltage
400 V
Housing Material
Polyamide 66
Number of Connections
2
Series
2002
UL 94 Flammability Rating
V-0
Item
Terminal Block
Terminal Block Type
Disconnect
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Tiers
1
Special Features
2 Jumper Slots, Front-Entry Wiring
For Conductor Type
Solid, Stranded
Circuit Protection Type
None
Number of Poles
1
For Conductor Material
Copper

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 16 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 400 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.6 in
