Shop WAGO

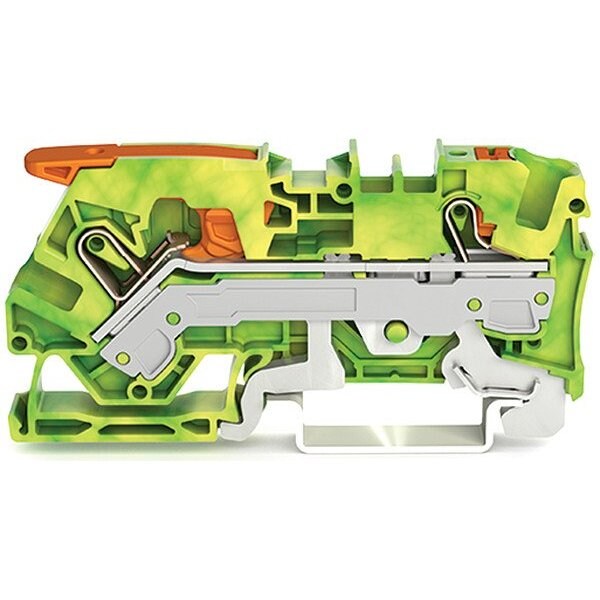

Terminal Block, 2.96" L, Green; Yellow

  • Mfr # 2106-5207

  • Zoro # G322935483

product price:
$
9.45
/ea

Key Features

For Channel Rail Size
35 mm
Number of Poles
1
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 66
Special Features
2 Jumper Slots, Front-Entry Wiring
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2106-5207
Zoro #
G322935483
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Wire Rope Length
2.96 in
Overall Depth
0.29 in
For Minimum Wire Size
20 AWG
Strip Length
19/32 in
For Maximum Wire Size
8 AWG
Overall Length
2.96 in
Length
2.96 in

Details

Number of Poles
1
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 66
Special Features
2 Jumper Slots, Front-Entry Wiring
For Conductor Type
Solid, Stranded
Terminal Block Type
Grounding
Minimum Operating Temperature
-60 Degrees C
Standards
ABS 24-0095985-PDA, ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7678, CCC GB/T 3836.3 2020312313000164 (Ex eb IIC Gb, Ex eb I Mb), CSA C22.2 70175103, IEC 60079 TUV 19.0823 U, IEC 60079-0 IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-103226, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, UKCA:CE, UL 1059, UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC)ATEX EN 60079-0 PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), UL File No. E45172
Housing Color
Green, Yellow
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Series
2106
Item
Terminal Block
Number of Connections
2
Connection Type
Push-In
Circuit Protection Type
None
For Conductor Material
Copper
Number of Tiers
1

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.96 in
