Shop WAGO

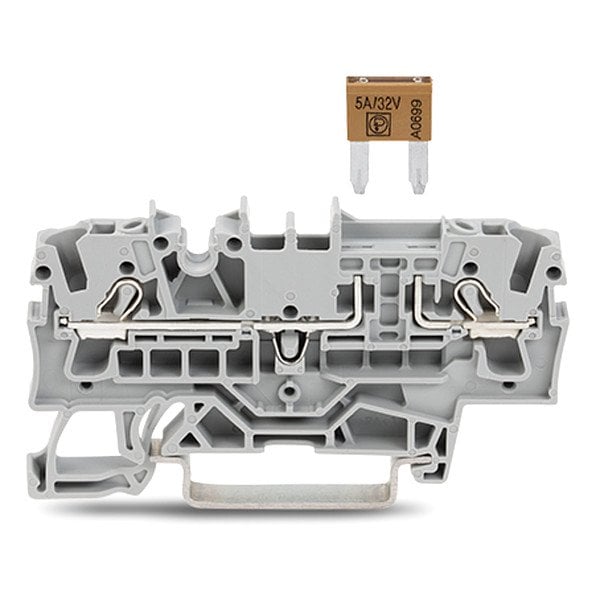

Terminal Block, 2.6" L, 400V, Gray

  • Mfr # 2002-1681

  • Zoro # G422653133

product price:  $7.19
/ea

Key Features

For Maximum Wire Size
12 AWG
For Fuse Length
16.3 mm
Connection Type
Push-In
For Conductor Type
Solid, Stranded
Number of Tiers
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1681
Zoro #
G422653133
UPC #
-
Country of Origin
China

Dimensions

For Maximum Wire Size
12 AWG
For Fuse Length
16.3 mm
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Wire Rope Length
2.6 in
For Channel Rail Size
35 mm
Overall Depth
0.2 in
Overall Length
2.6 in

Details

Connection Type
Push-In
For Conductor Type
Solid, Stranded
Number of Tiers
1
Housing Material
Polyamide 66
Maximum Voltage
400 V
Current
10 A
Circuit Protection Type
Fuse
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Item
Terminal Block
UL 94 Flammability Rating
V-0
Special Features
2 Jumper Slots, Front-Entry Wiring
Housing Color
Gray
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Standards
ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL-8054, CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Terminal Block Type
Fuse Holder
Number of Connections
2
Series
2002
Number of Poles
1

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 10 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 400 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Length 16.3 mm, Overall Depth 0.2 in, Overall Length 2.6 in
