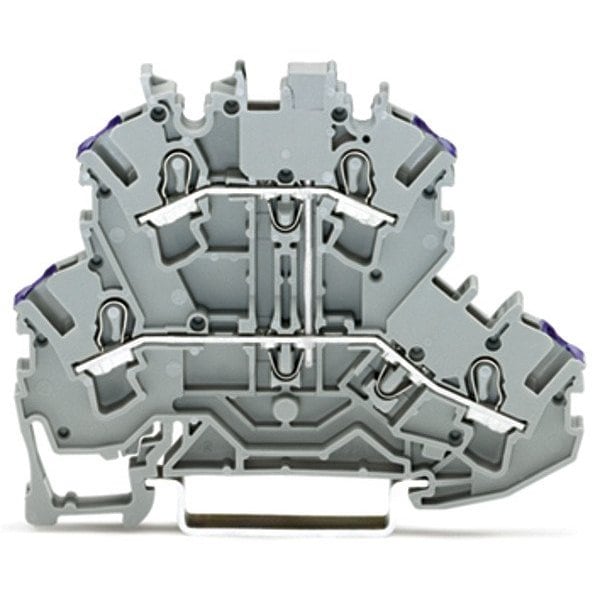

Terminal Block, 2.74" L, 500V, Gray

  • Mfr # 2002-2208

  • Zoro # G822935426

product price:  $5.99
/ea

Key Features

2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Tiers
2
For Channel Rail Size
35 mm
Standards
ABS EN 60947 24-0152298-PDA, ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-2208
Zoro #
G822935426
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
For Maximum Wire Size
12 AWG
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Overall Depth
0.2 in
Wire Rope Length
2.74 in
Overall Length
2.74 in

Details

2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Tiers
2
Standards
ABS EN 60947 24-0152298-PDA, ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Connection Type
Push-In
Number of Poles
1
For Conductor Material
Copper
Current
24 A
Special Features
3 Jumper Slots, Front-Entry Wiring
Circuit Protection Type
None
Terminal Block Type
Pass-Through
Item
Terminal Block
Housing Color
Gray
Number of Connections
4
Minimum Operating Temperature
-60 Degrees C
Maximum Voltage
500 V
For Conductor Type
Solid, Stranded
UL 94 Flammability Rating
V-0
Series
2002
Housing Material
Polyamide 66

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.74 in
