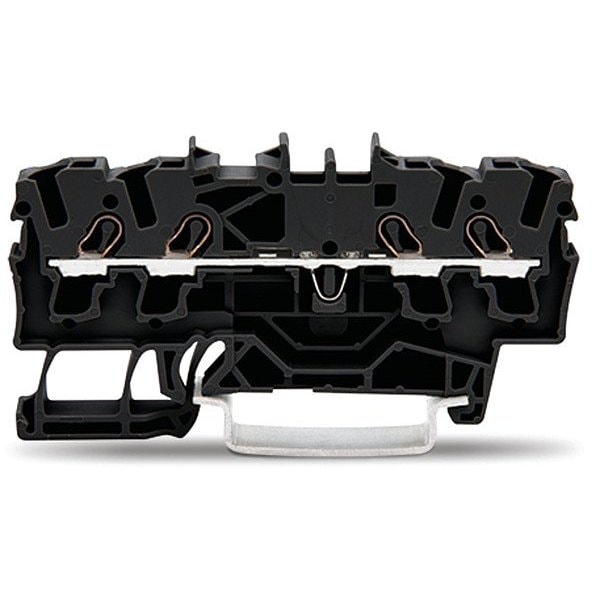

Terminal Block, 2.75" L, 1.55" W, 800V

  • Mfr # 2002-1405

  • Zoro # G322935421

product price:  $2.95
/ea

Key Features

Housing Color
Black
For Maximum Wire Size
12 AWG
Maximum Voltage
800 V
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
For Minimum Wire Size
22 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1405
Zoro #
G322935421
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Wire Size
12 AWG
For Minimum Wire Size
22 AWG
Overall Width
1.55 in
Strip Length
15/32 in
For Channel Rail Size
35 mm
Overall Depth
0.2 in
Wire Rope Length
2.75 in
Overall Length
2.75 in

Details

Housing Color
Black
Maximum Voltage
800 V
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
UL 94 Flammability Rating
V-0
Series
2002
For Conductor Type
Solid, Stranded
Connection Type
Push-In
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Special Features
2 Jumper Slots, Front-Entry Wiring
Item
Terminal Block
Terminal Block Type
Pass-Through
For Conductor Material
Copper
Number of Connections
4
Housing Material
Polyamide 66
Minimum Operating Temperature
-60 Degrees C
Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
24 A
Number of Poles
1
Circuit Protection Type
None

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Black, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.75 in, Overall Width 1.55 in
