Shop WAGO

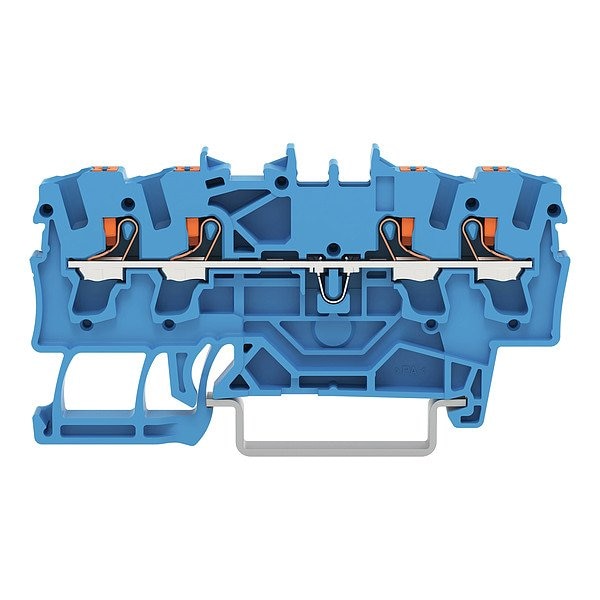

Terminal Block, 2.75" L, 1.55" W, 800V, Blue

  • Mfr # 2202-1404

  • Zoro # G522935399

product price:  $2.89
/ea

Key Features

Maximum Voltage
800 V
Wire Rope Length
2.75 in
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DEKRA EN 60947 71-147887, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Housing Color
Blue
Minimum Operating Temperature
-60 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-1404
Zoro #
G522935399
UPC #
-
Country of Origin
Germany

Dimensions

Wire Rope Length
2.75 in
Overall Depth
0.2 in
For Maximum Wire Size
12 AWG
Strip Length
15/32 in
For Channel Rail Size
35 mm
Overall Width
1.55 in
For Minimum Wire Size
22 AWG
Overall Length
2.75 in

Details

Maximum Voltage
800 V
Standards
ABS 24-0095985-PDA, Aex UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN IEC 60079-0 PTB 18 ATEX 1005 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DEKRA EN 60947 71-147887, DNV GL TAE00003JT, IEC 60079 IECEx PTB 18.0012U (Ex eb IIC Gb and Ex eb I Mb), KEMA/KEUR EN 60947 71-124827, LR 19/20050, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
Housing Color
Blue
Minimum Operating Temperature
-60 Degrees C
Number of Connections
4
Housing Material
Polyamide 66
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Item
Terminal Block
Terminal Block Type
Pass-Through
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Poles
1
Current
24 A
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
Number of Tiers
1
For Conductor Material
Copper
Series
2202

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.75 in, Overall Width 1.55 in
