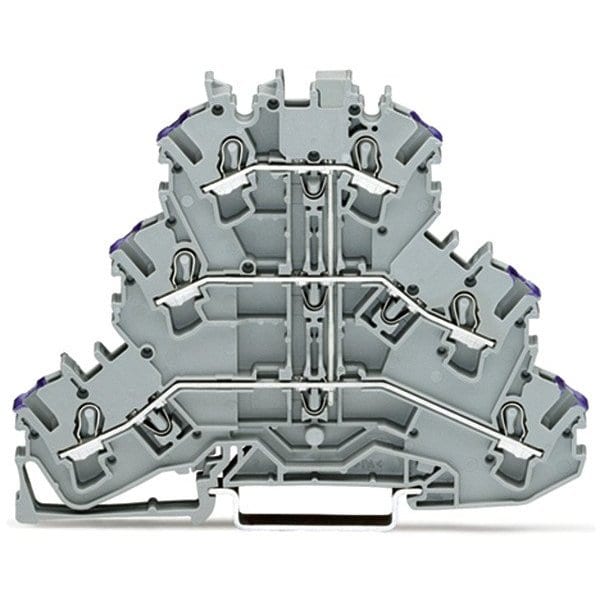

Terminal Block, 3.67" L, 500V, Gray

  • Mfr # 2002-3208

  • Zoro # G322935629

product price:
$
10.85
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

For Conductor Type
Solid, Stranded
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Minimum Operating Temperature
-60 Degrees C
Terminal Block Type
Pass-Through
For Minimum Wire Size
22 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3208
Zoro #
G322935629
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
For Channel Rail Size
35 mm
Overall Depth
0.2 in
Wire Rope Length
3.67 in
Strip Length
15/32 in
Overall Length
3.67 in
Length
3.67 in

Details

For Conductor Type
Solid, Stranded
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Minimum Operating Temperature
-60 Degrees C
Terminal Block Type
Pass-Through
Number of Poles
1
Number of Tiers
3
Housing Color
Gray
Housing Material
Polyamide 66
UL 94 Flammability Rating
V-0
Number of Connections
6
For Conductor Material
Copper
Special Features
5 Jumper Slots, Front-Entry Wiring
Current
24 A
Series
2002
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Item
Terminal Block
Circuit Protection Type
None
Maximum Voltage
500 V

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
