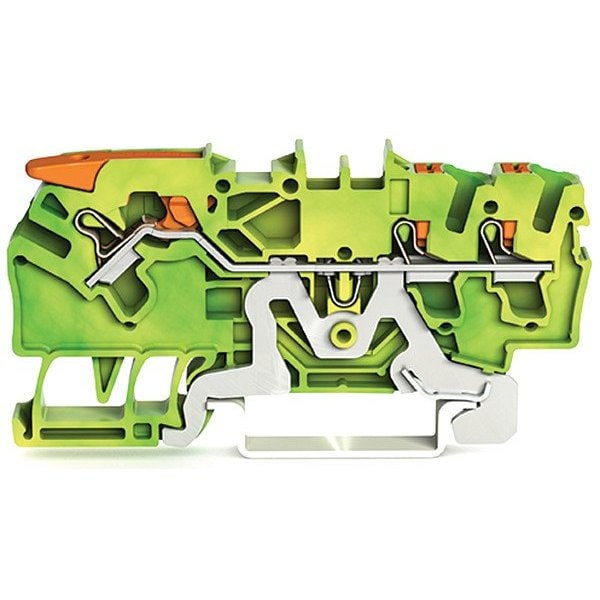

Terminal Block, 2.84" L, Green; Yellow

  • Mfr # 2102-5307

  • Zoro # G722935816

product price:  $9.15
/ea

Key Features

Number of Tiers
1
Minimum Operating Temperature
-60 Degrees C
Standards
ABS 24-0095985-PDA, AEX UL 60079 20181105-E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079-0 PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV DNV GLTAE00003JT, CCA EN 60947 NTR NL 7670, CCC GB/T 3836.3 2020312313000163 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175030, IEC 60079-0 IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-102882, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, TUV 19.0818 U, UKCA, UL 1059, UL File No. E45172
Connection Type
Push-In
For Conductor Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2102-5307
Zoro #
G722935816
UPC #
-
Country of Origin
Poland

Dimensions

For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Wire Rope Length
2.84 in
Overall Depth
0.2 in
Strip Length
15/32 in
Overall Length
2.84 in

Details

Number of Tiers
1
Minimum Operating Temperature
-60 Degrees C
Standards
ABS 24-0095985-PDA, AEX UL 60079 20181105-E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079-0 PTB 18 ATEX 1010 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV DNV GLTAE00003JT, CCA EN 60947 NTR NL 7670, CCC GB/T 3836.3 2020312313000163 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 70175030, IEC 60079-0 IECEx PTB 18.0017U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-102882, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, TUV 19.0818 U, UKCA, UL 1059, UL File No. E45172
Connection Type
Push-In
For Conductor Material
Copper
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Housing Color
Green, Yellow
Special Features
2 Jumper Slots, Front-Entry Wiring
Housing Material
Polyamide 66
Terminal Block Type
Grounding
Number of Poles
1
UL 94 Flammability Rating
V-0
Circuit Protection Type
None
Number of Connections
3
Item
Terminal Block
For Conductor Type
Solid, Stranded
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Series
2102

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current Not Applicable, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 2.84 in
