Shop WAGO

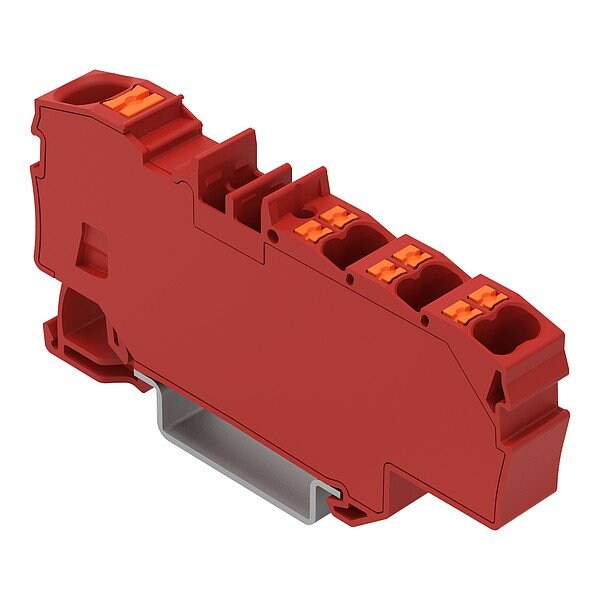

Terminal Block, 2.91" L, 1.3" W, 800V, Red

  • Mfr # 2206-8033

  • Zoro # G022935394

product price:  $11.89
/ea

Key Features

For Load Copper Wire Size - Maximum
14 AWG
For Load Copper Wire Size - Minimum
22 AWG
Line Connections/Pole
1
Overall Depth
0.35 in
Secondary Wire Range
18 to 14 AWG (Solid Conductor Push-In Termination), 18 to 16 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 22 to 14 AWG (Fine-Stranded Conductor), 22 to 14 AWG (Solid Conductor), 22 to 16 AWG (Fine-Stranded Conductor with Insulated Ferrule )
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2206-8033
Zoro #
G022935394
UPC #
-
Country of Origin
Germany

Dimensions

For Load Copper Wire Size - Maximum
14 AWG
For Load Copper Wire Size - Minimum
22 AWG
Overall Depth
0.35 in
Wire Rope Length
2.91 in
Overall Width
1.3 in
For Line Copper Wire Size - Maximum
8 AWG
For Line Copper Wire Size - Minimum
20 AWG
Overall Length
2.91 in

Details

Line Connections/Pole
1
Secondary Wire Range
18 to 14 AWG (Solid Conductor Push-In Termination), 18 to 16 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 22 to 14 AWG (Fine-Stranded Conductor), 22 to 14 AWG (Solid Conductor), 22 to 16 AWG (Fine-Stranded Conductor with Insulated Ferrule )
Special Features
Front-Entry Wiring, Push-Button Actuation
Maximum Voltage
800 V
Standards
AEX UL 60079 E 185892 (AEx eb IIC, Ex eb IIC), CCA EN 60947 NTR NL-7957, CCC GB/T 3836.3 2020312313000171, CSA C22.2 70175034, IEC 60079 TUV 19.0087 U, KEMA/KEUR EN 60947 71-125861, RoHS Compliant, UL C22.2 No. 158 E45172
Item
Terminal Block
Line Side Connection Type
Lug
Housing Color
Red
Housing Material
Polyamide 66
Load Side Connection Type
Lug
UL 94 Flammability Rating
V-0
Maximum Current - Copper Conductor
41 A
Load Connections/Pole
6
Series
2206
Minimum Operating Temperature
-60 Degrees C
For Conductor Material
Copper
Number of Poles
1
Primary Wire Range
14 to 8 AWG (Solid Conductor Push-In Termination ), 16 to 10 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 20 to 10 AWG (Fine-Stranded Conductor with Insulated Ferrule ), 20 to 8 AWG (Fine-Stranded Conductor), 20 to 8 AWG (Solid Conductor)

Description

Terminal Block, For Conductor Material Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 20 AWG, For Line Copper Wire Size - Maximum 8 AWG, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 22 AWG, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 41 A, Maximum Voltage 800 V, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 0.35 in, Overall Length 2.91 in, Overall Width 1.3 in, UL 94 Flammability Rating V-0, Housing Color Red
