Shop WAGO

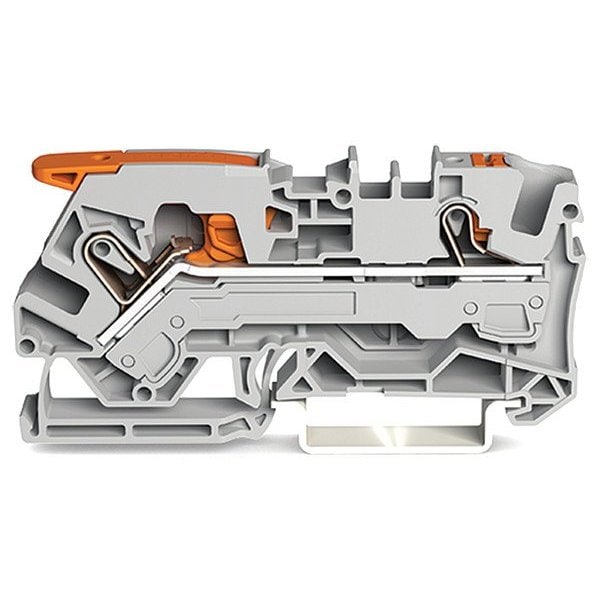

Terminal Block, 2.94" L, 1.55" W, 800V, Gray

  • Mfr # 2106-5201

  • Zoro # G122935805

product price:  $4.29
/ea

Key Features

Maximum Voltage
800 V
For Maximum Wire Size
8 AWG
For Conductor Type
Solid, Stranded
Standards
ABS 24-0095985-PDA, ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7678, CCC GB/T 3836.3 2020312313000164 (Ex eb IIC Gb, Ex eb I Mb), CSA C22.2 70175103, IEC 60079 TUV 19.0823 U, IEC 60079-0 IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-103226, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, UKCA:CE, UL 1059, UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC)ATEX EN 60079-0 PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), UL File No. E45172
Series
2106
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2106-5201
Zoro #
G122935805
UPC #
-
Country of Origin
Germany

Dimensions

For Maximum Wire Size
8 AWG
Wire Rope Length
2.94 in
For Channel Rail Size
35 mm
Strip Length
19/32 in
For Minimum Wire Size
20 AWG
Overall Depth
0.29 in
Overall Width
1.55 in
Overall Length
2.94 in

Details

Maximum Voltage
800 V
For Conductor Type
Solid, Stranded
Item
Terminal Block
Standards
ABS 24-0095985-PDA, ATEX-Attestation of Conformity, BV IEC 60947 58186/A0 BV, CCA EN 60947 NTR NL 7678, CCC GB/T 3836.3 2020312313000164 (Ex eb IIC Gb, Ex eb I Mb), CSA C22.2 70175103, IEC 60079 TUV 19.0823 U, IEC 60079-0 IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb), KEMA/KEUR EN 60947 71-103226, LR 19/20050, PRS TE71097/880590/23, RoHS Compliant, UKCA:CE, UL 1059, UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC)ATEX EN 60079-0 PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb), UL File No. E45172
Series
2106
Housing Material
Polyamide 66
2-Pole Jumper Compatibility
2006-402, 2006-433, 2006-434, 2006-435
Number of Connections
2
For Conductor Material
Copper
Minimum Operating Temperature
-60 Degrees C
Connection Type
Push-In
UL 94 Flammability Rating
V-0
Special Features
2 Jumper Slots, Front-Entry Wiring
Number of Poles
1
Number of Tiers
1
Terminal Block Type
Pass-Through
Circuit Protection Type
None
Current
41 A
Housing Color
Gray

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 41 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 2.94 in, Overall Width 1.55 in
