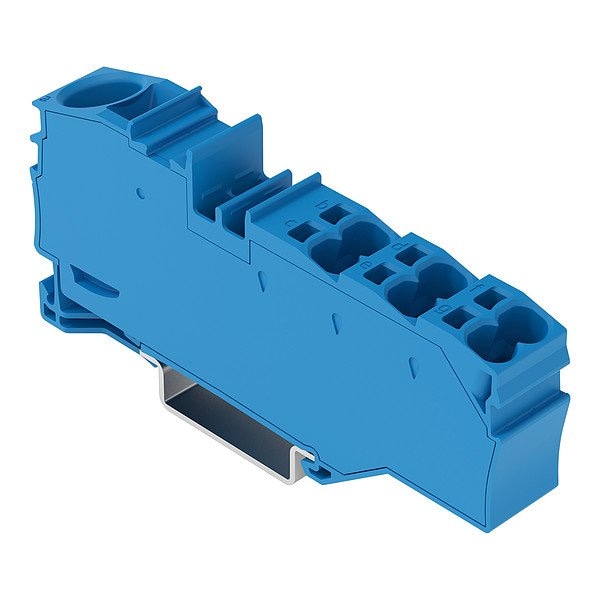

Terminal Block, 3.43" L, 1.71" W, 800V, Blue

  • Mfr # 2016-8034

  • Zoro # G422935543

product price:  $12.99
/ea

Key Features

Minimum Operating Temperature
-60 Degrees C
Housing Color
Blue
Load Connections/Pole
6
For Load Copper Wire Size - Minimum
20 AWG
Overall Width
1.71 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2016-8034
Zoro #
G422935543
UPC #
-
Country of Origin
Poland

Dimensions

For Load Copper Wire Size - Minimum
20 AWG
Overall Width
1.71 in
For Load Copper Wire Size - Maximum
10 AWG
Overall Depth
0.5 in
Wire Rope Length
3.43 in
For Line Copper Wire Size - Maximum
4 AWG
For Line Copper Wire Size - Minimum
20 AWG
Overall Length
3.43 in

Details

Minimum Operating Temperature
-60 Degrees C
Housing Color
Blue
Load Connections/Pole
6
Line Connections/Pole
1
Secondary Wire Range
16 to 10 AWG (Solid Conductor Push-In Termination), 16 to 12 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 20 to 10 AWG (Fine-Stranded Conductor), 20 to 10 AWG (Solid Conductor), 20 to 10 AWG (Stranded Conductor), 20 to 12 AWG (Fine-Stranded Conductor with Insulated Ferrule), 20 to 12 AWG (Fine-Stranded Conductor with Uninsulated Ferrule)
Load Side Connection Type
Lug
Series
2016
Maximum Voltage
800 V
For Conductor Material
Copper
Standards
IEC Approved, RoHS Compliant
Special Features
Operating Tool Actuation
Number of Poles
1
Primary Wire Range
10 to 6 AWG (Fine-Stranded Conductor with Ferrule Push-In Termination), 10 to 6 AWG (Solid Conductor Push-In Termination, Fine-Stranded Conductor with Insulated Ferrule, Fine-Stranded Conductor with Uninsulated Ferrule), 20 to 4 AWG (Fine-Stranded Conductor), 20 to 6 AWG (Solid Conductor)
Maximum Current - Copper Conductor
76 A
Housing Material
Polyamide 66
Item
Terminal Block
UL 94 Flammability Rating
V-0
Line Side Connection Type
Lug

Description

Terminal Block, For Conductor Material Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 20 AWG, For Line Copper Wire Size - Maximum 4 AWG, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 20 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 76 A, Maximum Voltage 800 V, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 0.5 in, Overall Length 3.43 in, Overall Width 1.71 in, UL 94 Flammability Rating V-0, Housing Color Blue
