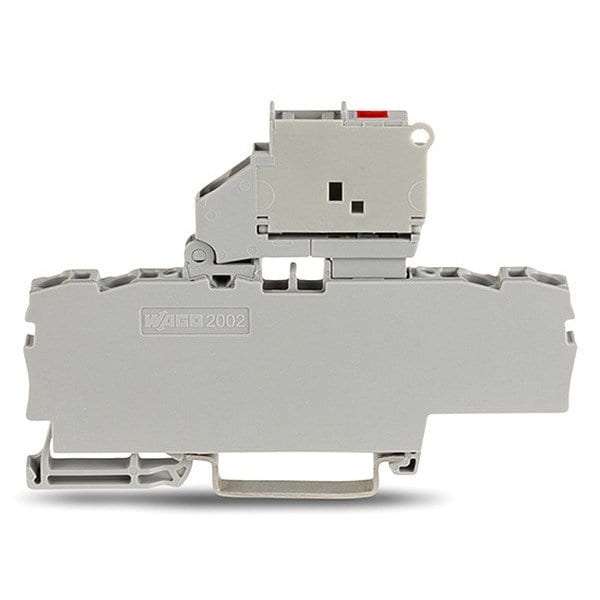

Terminal Block, 3.44" L, 250V, Gray

  • Mfr # 2002-1811/1000-541

  • Zoro # G322935742

product price:
$
21.19
/ea

Key Features

For Fuse Diameter
5 mm
Current
6 A
For Conductor Material
Copper
Terminal Block Type
Disconnect
Minimum Operating Temperature
-35 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1811/1000-541
Zoro #
G322935742
UPC #
-
Country of Origin
China

Dimensions

For Fuse Diameter
5 mm
Wire Rope Length
3.44 in
Overall Depth
0.24 in
For Maximum Wire Size
12 AWG
For Fuse Length
20 mm
Strip Length
15/32 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Overall Length
3.44 in

Details

Current
6 A
For Conductor Material
Copper
Terminal Block Type
Disconnect
Minimum Operating Temperature
-35 Degrees C
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Series
2002
Housing Color
Gray
Number of Tiers
1
Special Features
2 Jumper Slots, Front-Entry Wiring
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
For Conductor Type
Solid, Stranded
Number of Connections
4
Circuit Protection Type
Fuse
Item
Terminal Block
Number of Poles
1
Connection Type
Push-In
UL 94 Flammability Rating
V-0
Maximum Voltage
250 V
Housing Material
Polyamide 66

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 6 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 250 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.24 in, Overall Length 3.44 in
