Shop WAGO

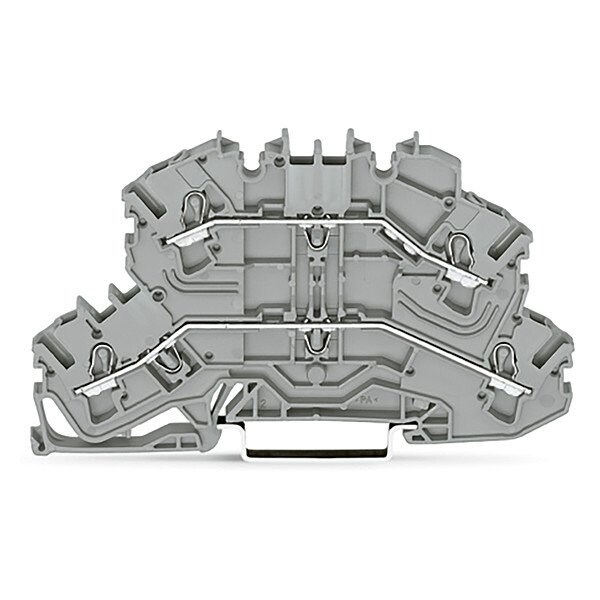

Terminal Block, 3.66" L, 500V, Gray

  • Mfr # 2002-2601

  • Zoro # G522935740


product price:
$
8.35
/ea

Key Features

Housing Material
Polyamide 66
Housing Color
Gray
Minimum Operating Temperature
-60 Degrees C
Standards
ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL-8054, CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
For Minimum Wire Size
22 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-2601
Zoro #
G522935740
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
22 AWG
Wire Rope Length
3.66 in
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Channel Rail Size
35 mm
Strip Length
15/32 in
Overall Length
3.66 in
Length
3.66 in

Details

Housing Material
Polyamide 66
Housing Color
Gray
Minimum Operating Temperature
-60 Degrees C
Standards
ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL-8054, CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Item
Terminal Block
For Conductor Material
Copper
Circuit Protection Type
None
UL 94 Flammability Rating
V-0
Connection Type
Push-In
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Maximum Voltage
500 V
For Conductor Type
Solid, Stranded
Current
24 A
Number of Connections
4
Number of Poles
2
Terminal Block Type
Pass-Through
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Number of Tiers
2
Special Features
4 Jumper Slots, Front-Entry Wiring
Series
2002

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 2, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.66 in
