Shop WAGO

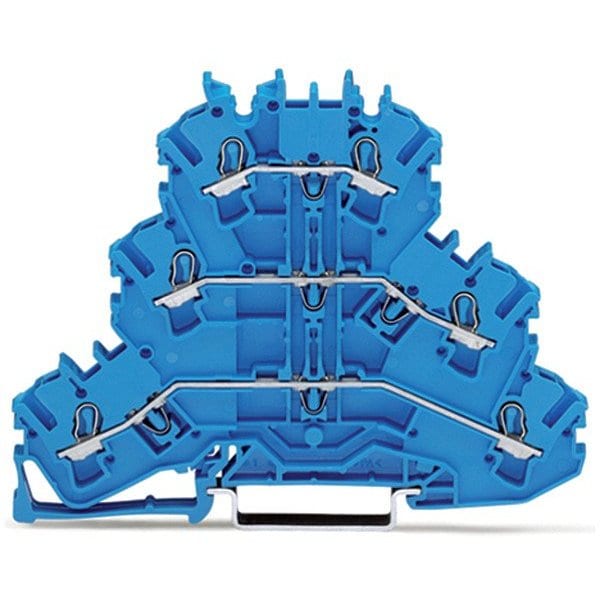

Terminal Block, 3.67" L, 500V, Blue

  • Mfr # 2002-3204

  • Zoro # G422935697

product price:  $7.39
/ea

Key Features

Housing Material
Polyamide 66
Number of Connections
6
Wire Rope Length
3.67 in
Housing Color
Blue
For Conductor Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3204
Zoro #
G422935697
UPC #
-
Country of Origin
Germany

Dimensions

Wire Rope Length
3.67 in
Strip Length
15/32 in
For Maximum Wire Size
12 AWG
For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
Overall Depth
0.2 in
Overall Length
3.67 in

Details

Housing Material
Polyamide 66
Number of Connections
6
Item
Terminal Block
Housing Color
Blue
For Conductor Material
Copper
Series
2002
Maximum Voltage
500 V
Circuit Protection Type
None
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Connection Type
Push-In
Current
24 A
Minimum Operating Temperature
-60 Degrees C
Terminal Block Type
Pass-Through
Special Features
6 Jumper Slots, Front-Entry Wiring
For Conductor Type
Solid, Stranded
UL 94 Flammability Rating
V-0
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DNV GL TAE00001V2, IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Number of Poles
3
Number of Tiers
3
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 3, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
