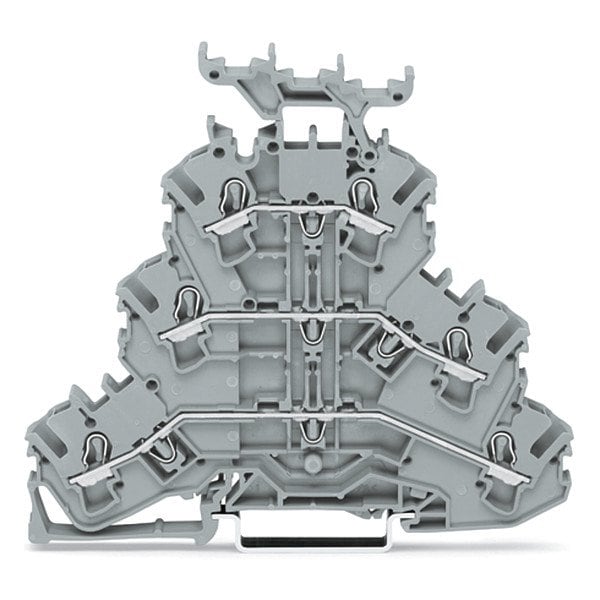

Terminal Block, 3.67" L, 500V, Gray

  • Mfr # 2002-3231

  • Zoro # G522935610

product price:
$
7.65
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
2002
Number of Tiers
3
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
For Channel Rail Size
35 mm
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-3231
Zoro #
G522935610
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
For Maximum Wire Size
12 AWG
Wire Rope Length
3.67 in
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
Overall Depth
0.2 in
Overall Length
3.67 in
Length
3.67 in

Details

Series
2002
Number of Tiers
3
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Poles
3
Housing Material
Polyamide 66
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Terminal Block Type
Pass-Through
Item
Terminal Block
Maximum Voltage
500 V
Housing Color
Gray
Number of Connections
6
Connection Type
Push-In
Minimum Operating Temperature
-60 Degrees C
Circuit Protection Type
None
UL 94 Flammability Rating
V-0
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 TUV 12.1307 U, KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
For Conductor Type
Solid, Stranded
Current
24 A
Special Features
6 Jumper Slots, Front-Entry Wiring
For Conductor Material
Copper

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 3, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.67 in
