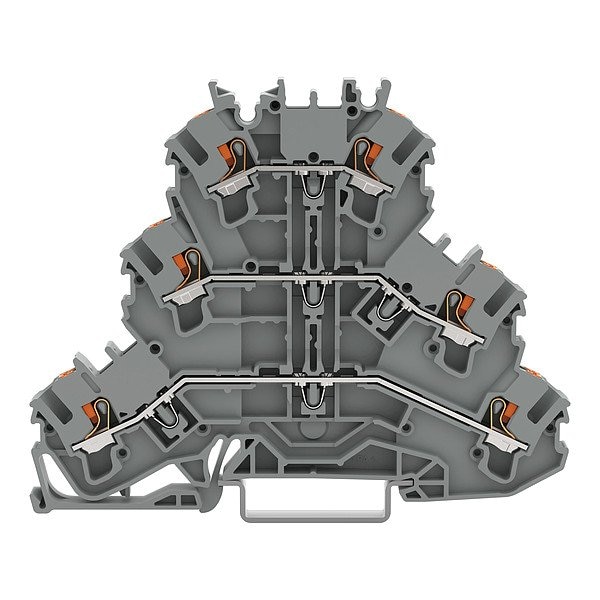

Terminal Block, 3.68" L, 500V, Gray

  • Mfr # 2202-3201

  • Zoro # G522935658

product price:
$
7.29
/ea

Key Features

Circuit Protection Type
None
Housing Material
Polyamide 66
Number of Connections
6
Terminal Block Type
Pass-Through
Housing Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2202-3201
Zoro #
G522935658
UPC #
-
Country of Origin
Germany

Dimensions

For Channel Rail Size
35 mm
Wire Rope Length
3.68 in
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
Strip Length
15/32 in
For Maximum Wire Size
12 AWG
Overall Length
3.68 in

Details

Circuit Protection Type
None
Housing Material
Polyamide 66
Number of Connections
6
Terminal Block Type
Pass-Through
Housing Color
Gray
Series
2202
Maximum Voltage
500 V
Special Features
2 Jumper Slots, Front-Entry Wiring
Item
Terminal Block
Current
22 A
Number of Tiers
3
Standards
Aex UL 60079 E185892, CCA EN 60947 NTR NL 7950, CCC GB/T 3836.3 2020312313000169, CE, CSA C22.2 70173745, DEKRA EN 60947 71-147887, KEMA/KEUR EN 60947 71-124827, RoHS Compliant, UKCA, UL 1059 UL-CA-L45172-6189178-11508102-1
UL 94 Flammability Rating
V-0
For Conductor Type
Solid, Stranded
Connection Type
Push-In
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
For Conductor Material
Copper
Minimum Operating Temperature
-60 Degrees C
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Poles
1

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 22 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 3, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 3.68 in
