Shop WAGO

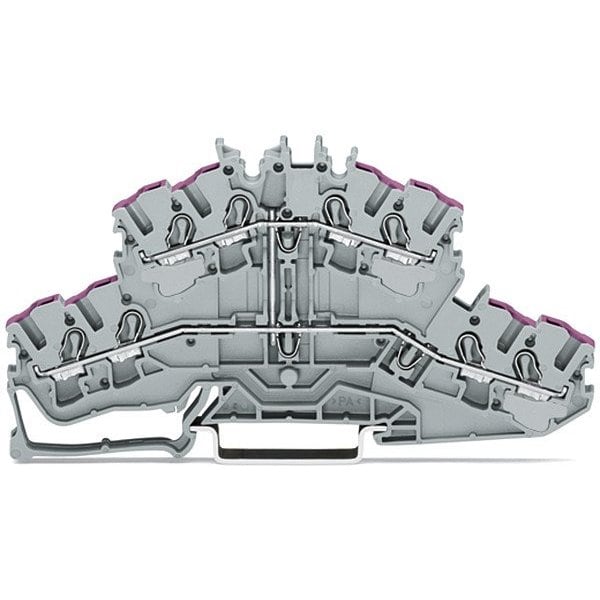

Terminal Block, 4.13" L, 800V, Gray

  • Mfr # 2002-2408

  • Zoro # G522653088

product price:  $8.99
/ea

Key Features

Strip Length
15/32 in
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb), KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Wire Rope Length
4.13 in
Maximum Voltage
800 V
Housing Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-2408
Zoro #
G522653088
UPC #
-
Country of Origin
China

Dimensions

Strip Length
15/32 in
Wire Rope Length
4.13 in
For Maximum Wire Size
12 AWG
Overall Depth
0.2 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Overall Length
4.13 in

Details

Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 PTB 03 ATEX 1162 U (II2G Ex eb IIC Gb, IM2 Ex eb Imb), CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000238 (Ex eb IIC Gb, Ex eb I Mb), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IEC 60079 IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb), KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, TUV 12.1307 U, UKCA, UL 1059, UL File No. E45172
Maximum Voltage
800 V
Item
Terminal Block
Housing Color
Gray
Special Features
2 Jumper Slots, Front-Entry Wiring
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Terminal Block Type
Pass-Through
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Connection Type
Push-In
Minimum Operating Temperature
-60 Degrees C
Number of Connections
8
Number of Tiers
2
Series
2002
For Conductor Material
Copper
Number of Poles
1
For Conductor Type
Solid, Stranded
Current
24 A
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 66
Circuit Protection Type
None

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 24 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.2 in, Overall Length 4.13 in
