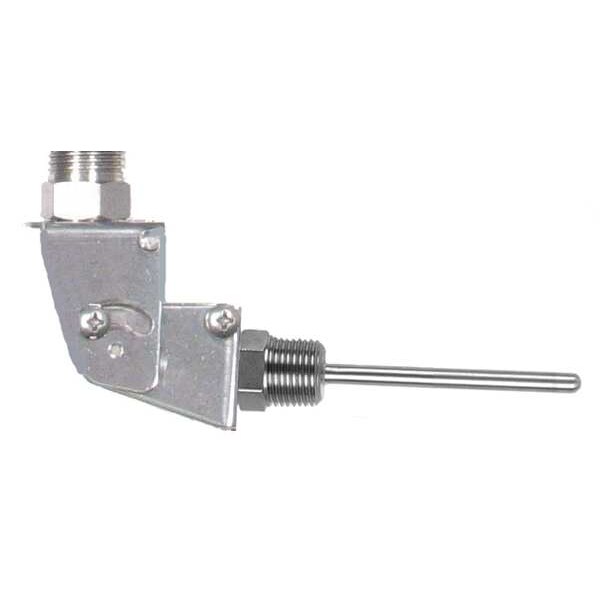

Immersion Temperature Probe, RTD, 4 In L

  • Mfr # DST501A22104X

  • Zoro # G2309128


product price: $273.99
/ea
Free Shipping & Returns

Key Features

Probe Length
4 in
For Use With
Wahl Digi-Stem Meter
Temperature Measuring Element
RTD
Process Connection
1/2 in NPT
Manufacturers Warranty Length
2 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DST501A22104X
Zoro #
G2309128
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
4 in
Manufacturers Warranty Length
2 yr
Probe Wire Length
3 in
Probe Dia.
1/4 in
Cable Length
3 in
Probe Size
1/4 in x 4 in
Manufacturer Warranty Length
2 yr
Probe Diameter
0.25 in

Details

Item
Immersion Temperature Probe
For Use With
Wahl Digi-Stem Meter
Temperature Measuring Element
RTD
Process Connection
1/2 in NPT
Calibration Certificate
NIST
Includes
All Angle, NPT Process Connection
Probe Material
317 Stainless Steel
Accuracy
+/-0.15 Degrees C
Use
Air or Liquids
Temp. Range (F)
-76 Degrees to 400 Degrees
Probe Temp. Measuring Element
100 Ohm RTD
Probe Connector
Bare Wire
Primary Measuring Element
RTD
Probe Connection Type
Bare Wire
Probe Contact Material
316 Stainless Steel
Temp. Range (C)
-60 Degrees to 204 Degrees
Process Mounting
1/2 in NPT
Minimum Temperature F
-76 Degrees F
Maximum Temperature F
400 Degrees F
Sensor Type
RTD
Maximum Temperature C
204 Degrees C
Includes Thermowell
No
Includes Signal Converter
No
For Liquids and Gels
Yes
For Gases
Yes
For Solids
No
For Application
Food and Beverage, Pharmaceutical, Process
Connector Type
Bare Wire
Fitting Type
1/2 in NPT
For Air
No
Minimum Temperature C
-60 Degrees C
Temperature Range
-76 Degrees to 400 Degrees F/-60 Degrees to 204 Degrees C
Number of Wires
4-Wire
Probe Sheath Material
316L Stainless Steel
Response Time
2 sec
Resistance
100 ohm
Probe Bend
Adjustable
RTD Type
4-Wire 100 ohm
Maximum Temperature °C
204 Degrees C
Minimum Temperature °F
-76 Degrees F
Maximum Temperature °F
400 Degrees F
Minimum Temperature °C
-60 Degrees C

Description

Immersion Temperature Probe, RTD Type 4-Wire 100 ohm, For Application Food and Beverage, Pharmaceutical, Process, Number of Wires 4-Wire, Bare Wire, Cable Material Not Applicable, Cable Length 3 in, -76 Degrees to 400 Degrees F/-60 Degrees to 204 Degrees C
